GE H EALTHCARE
D IRECTION GA091568, R EVISION 5 VIVID E9 S ERVICE M ANUAL
5 - 48 Section 5-8 - Front End Processor (FEP)
5-8-8-2 Location in the Unit
The GFI2 board is plugged into the Back Plane as the right most board in the FE rack.
5-8-8-3 Input DC Voltages
• +24 DC (from Main LV Power via FEP Backplane)
• +/- 15 VDC
• +/- 6VA DC
• BEP5V
Other needed voltages are generated locally on the GFI.
5-8-8-4 Clocks
These clocks are generated on the board:
• 200 MHz for on board (GFI) use
• 200/50 MHz (for the RX board)
• 200 MHz for the RX board

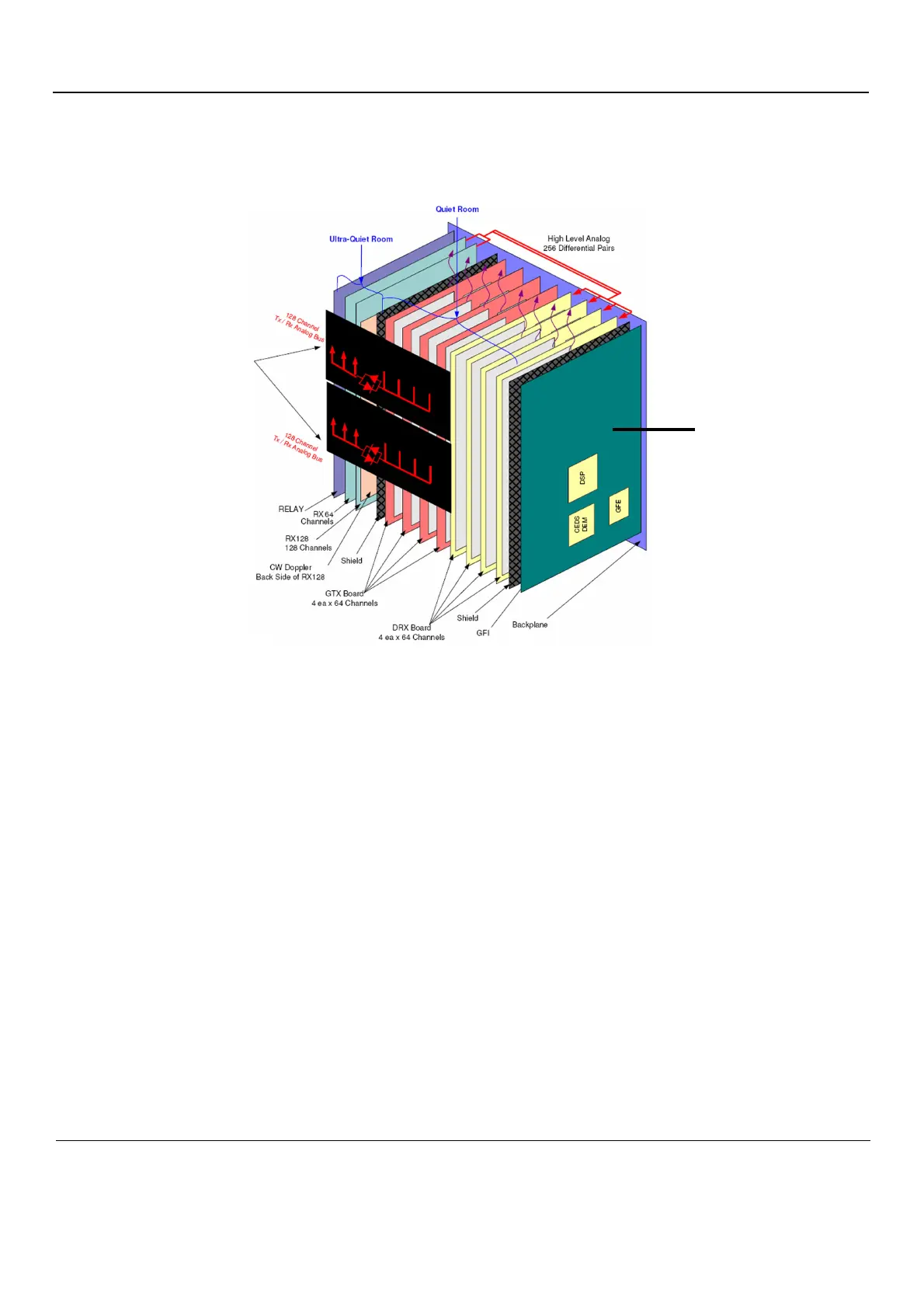

Figure 5-34 GFI2 location
GFI2 BOARD
