Chapter 5 - Components and functions (theory) 5 - 75
5-9-15-4 LEDs on the BEP5 Rear Panel
Two LEDs are located to the right for each USB connector.
• The upper LED next to a USB connector: is USB connected and in use: Lit (green).
• The lower LED next to a USB connector is USB activity: Lit (green).
NOTE: The BEP6 Rear Panel doesn’t have any LEDs.

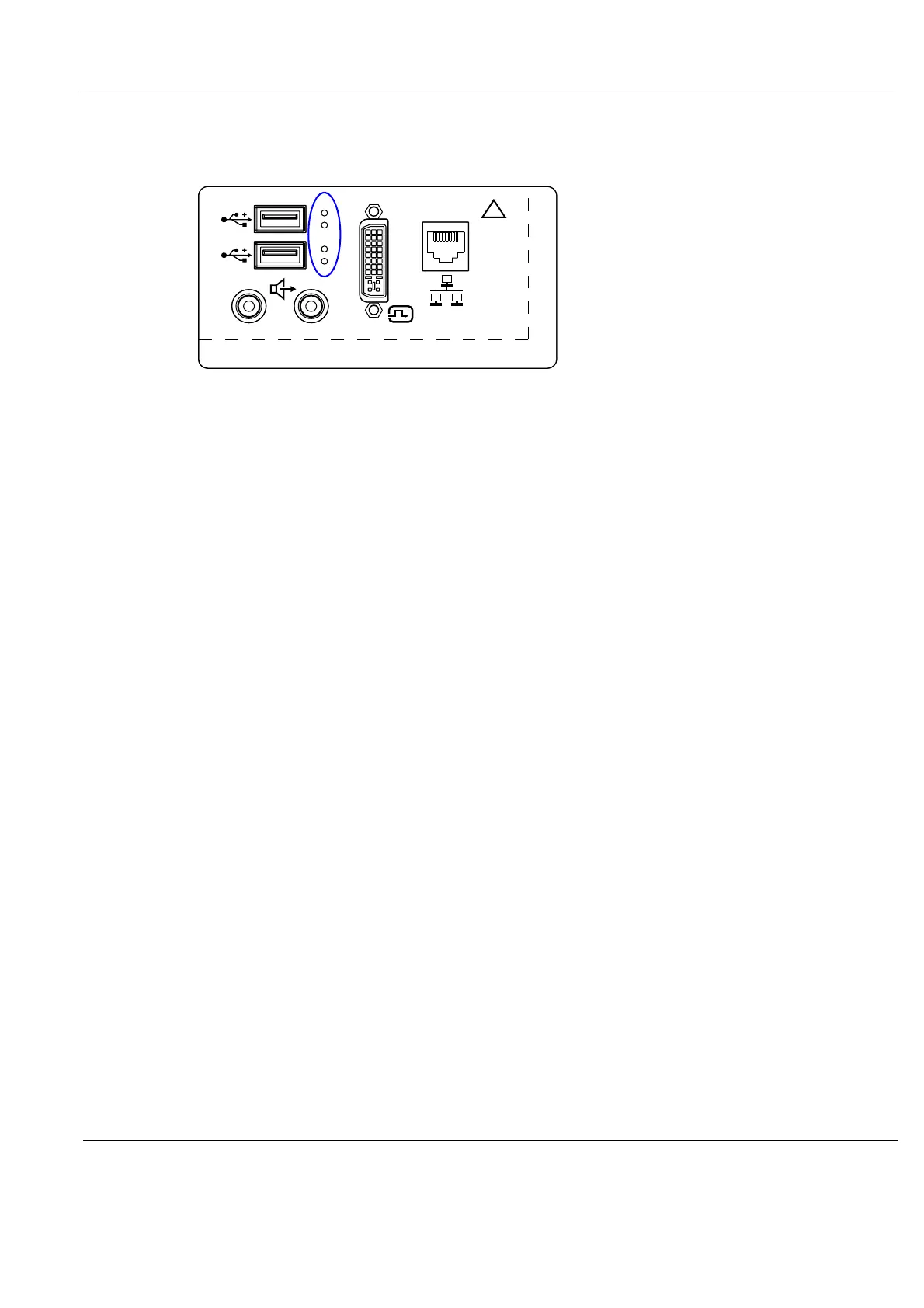

Figure 5-54 LEDs on the BEP5 Rear Panel
!
