8 - 222 Section 8-10 - Front End Processor (FEP) / Card Cage parts replacement
8-10-2-2 FEP Cover removal procedure
An EMI cover is used to ground the PCIe (GFI) cable to the FEP cover.
1.) Unscrew the fixing screw for the cover for the PCIe (GFI) cable.
2.) Remove the cover for the PCIe cable.
3.) Unplug the PCIe Cable.
4.) Unscrew the FEP Cover’s ten fixing screws.
5.) Remove the FEP Cover.

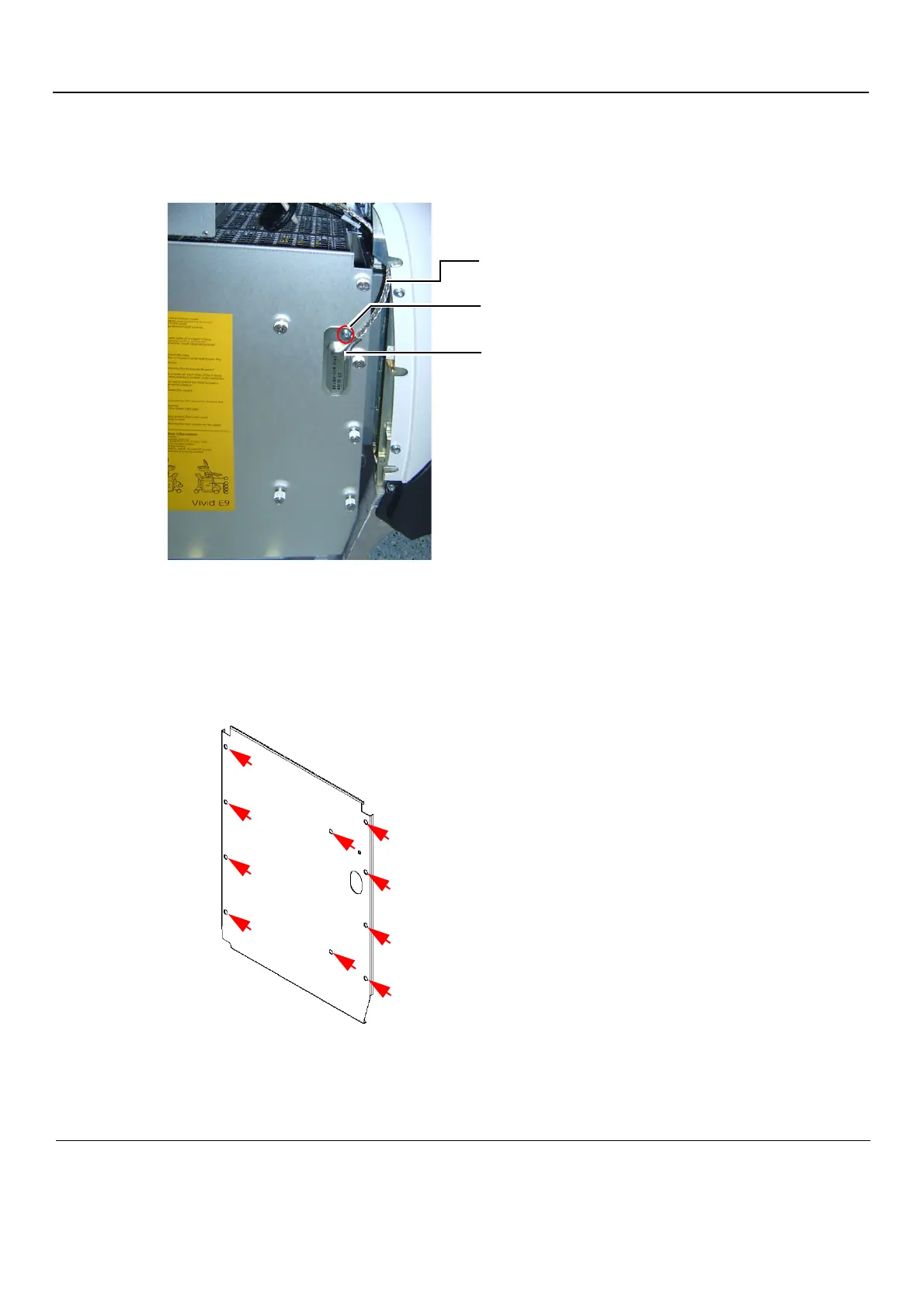

Figure 8-217 EMI cover for PCIe cable
Figure 8-218 FEP Cover’s fixing screws
EMI cover for PCIe cable
Fixing screw for PCIe cable
PCIe (GFI) cable
To Next Page
