Chapter 8 - Replacement procedures 8 - 301
8-13-2-4 BEP5 I/O Board Assembly removal
Follow these steps to remove the BEP5 I/O Board Assembly:
1.) Disconnect the cables inside the BEP that connect to the I/O.
- Flat cable from the Video (Graphics) board.
2.) Remove the five screws connecting the I/O to the BEP.
3.) Reach inside the BEP frame to pull the I/O Board Assembly out of the BEP.
4.) Set the I/O Board Assembly aside.

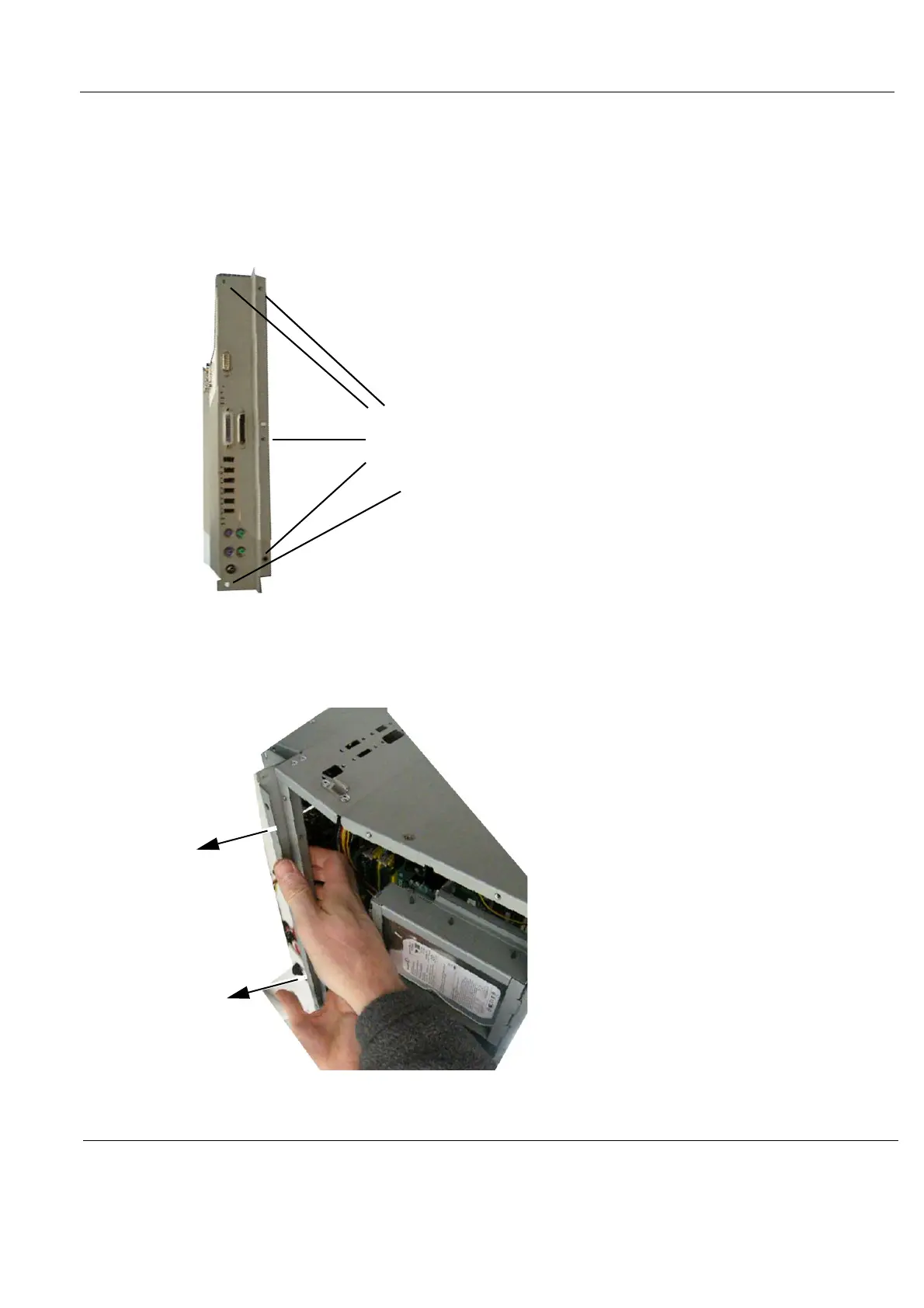

Figure 8-250 BEP5 I/O Board Assembly’s screw placement
Figure 8-251 Remove the BEP5 I/O Board Assembly
SCREWS
