9 - 20 Section 9-7 - Top Console parts
3.

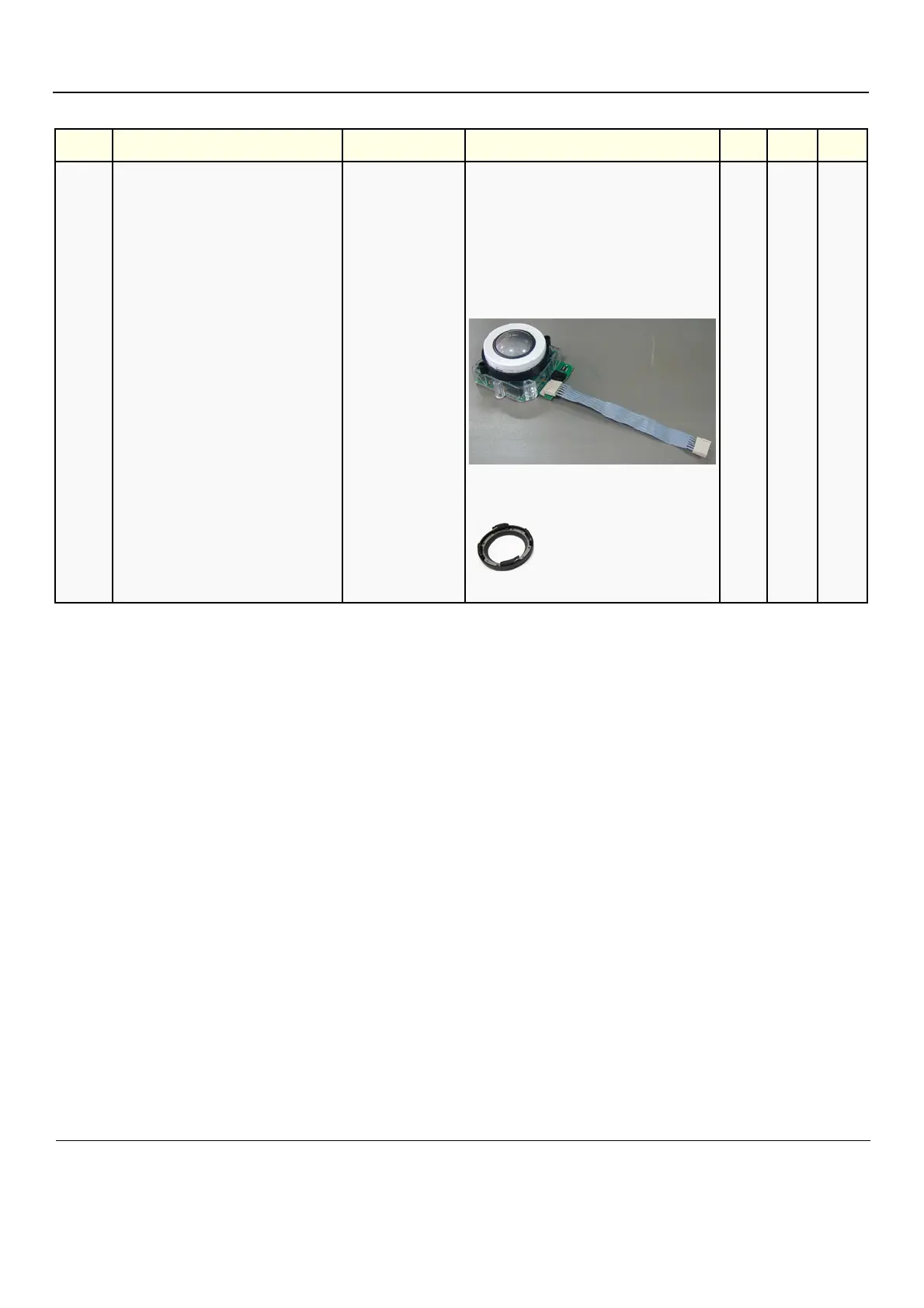

Laser Trackball Assembly. GB200017
For OP-5:
On this new trackball, the top locking plate
including the rubber dust filtering ring can
be detached from outer side of the
Operator Panel for cleaning purposes (do
not need to get inside the panel).
The new Laser Trackball Assembly can be
used with old versions of
Operator Panel Upper.
1 N N
Table 9-14 OP-5 parts (cont’d) sheet 2 of 2
ITEM PART NAME PART NUMBER DESCRIPTION QTY CRU FRU
Dust Gasket, Rubber Type, for older Lower
Panels with small trackball opening in the
bezel.
(To be used together with the
complete Trackball Assembly,
by just replacing the Dust
Gasket.)
