P a g e | 100

GDS3710 User Manual

Version 1.0.7.8

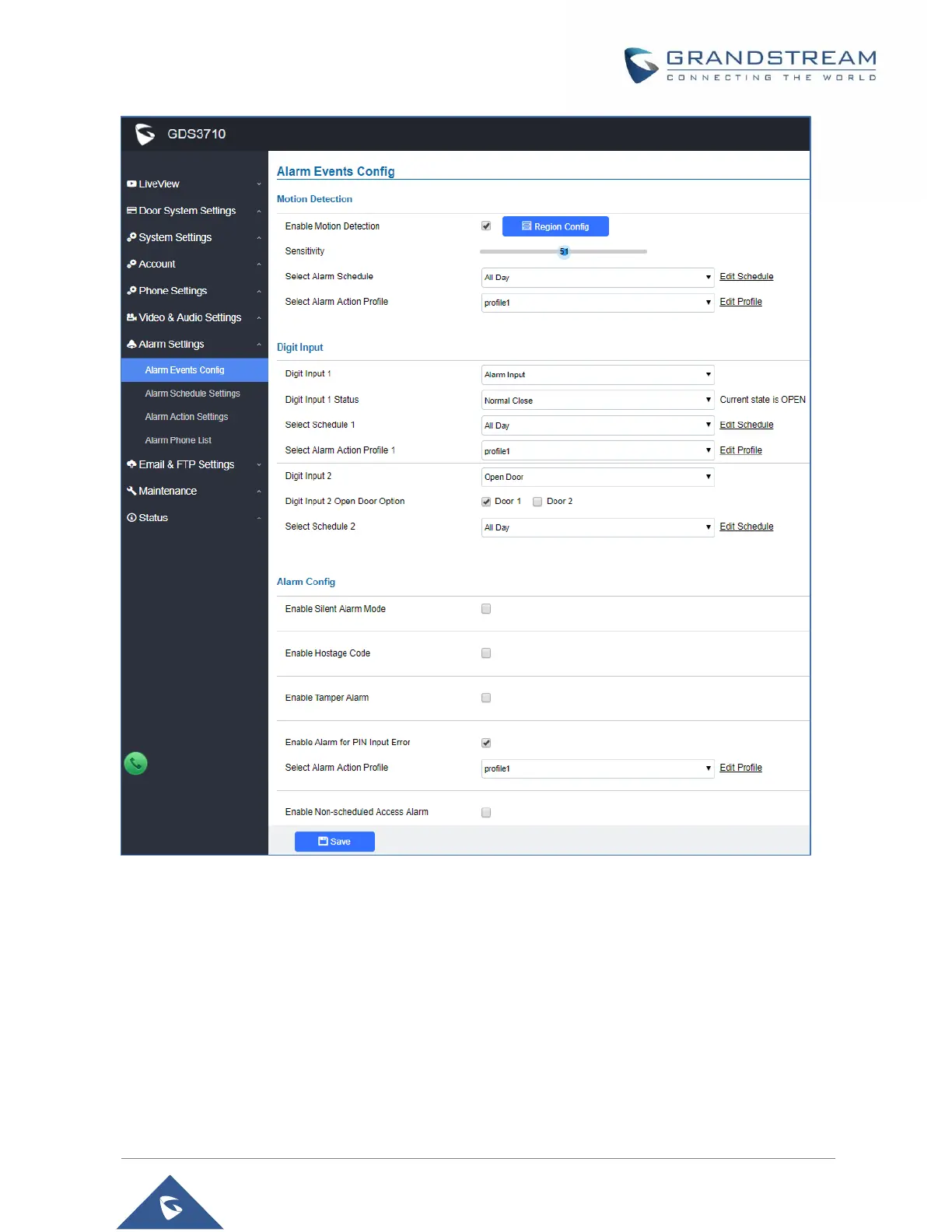

Figure 75: Events Page

Alarm can be triggered either by motion detection or by GDS3710 input.

Motion Detection

Users can select a specific region to trigger the alarm using motion detection.

Table of Contents6
