These HTTP POST messages can be used by a 3

party software to integrate the GDS3710.

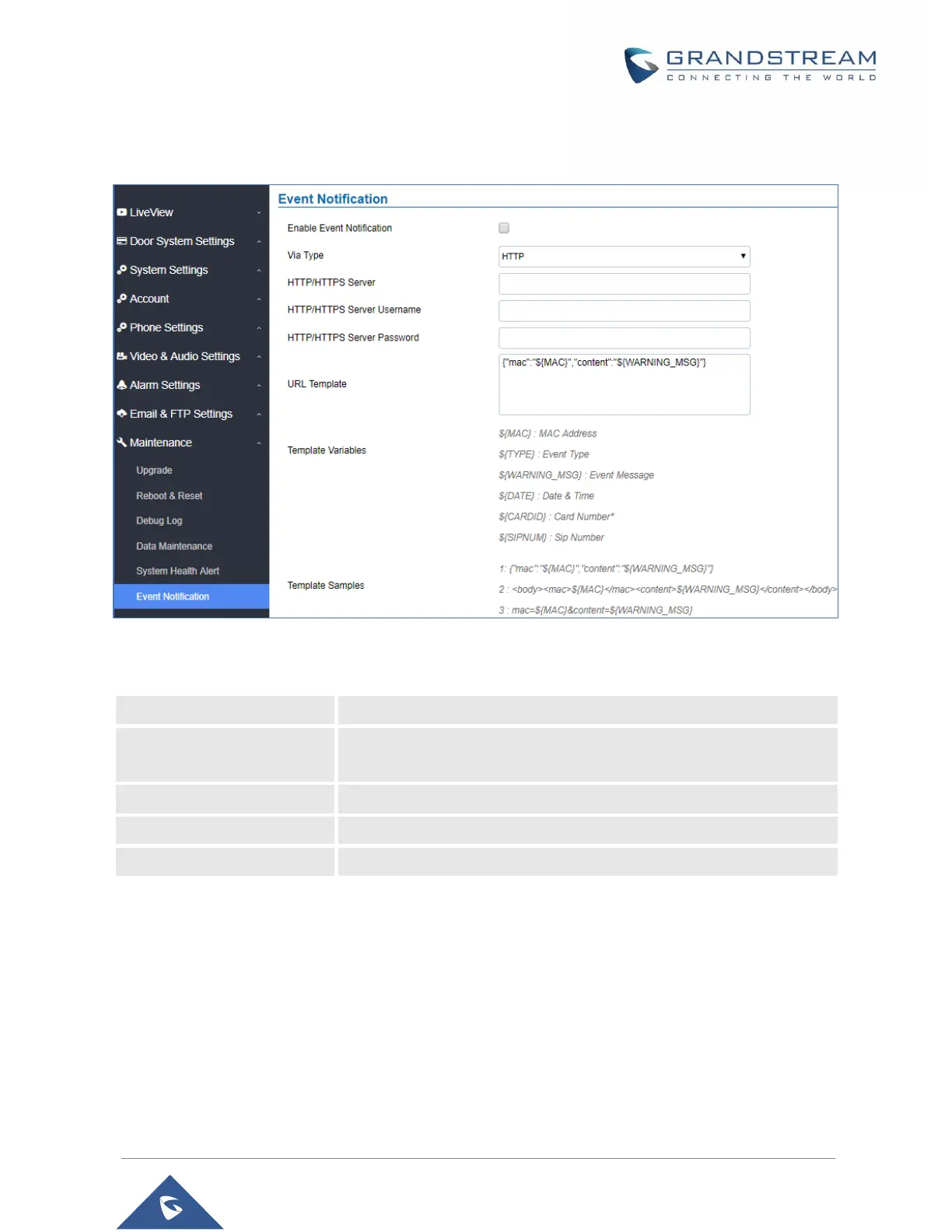

Figure 91: Log Manager Page

Table 36 : Log Manager Settings

Enable Event Notification

Enables Event Notification feature

Via Type

Choose which protocol will be used to connect to the logs server

(HTTP or HTTPs).

HTTP/HTTPs Server

Enter the IP address of domain name for the logs server.

HTTP Server Username

Configure the username of your HTTP(s) server

HTTP Server Password

Configure the password of your HTTP(s) server
