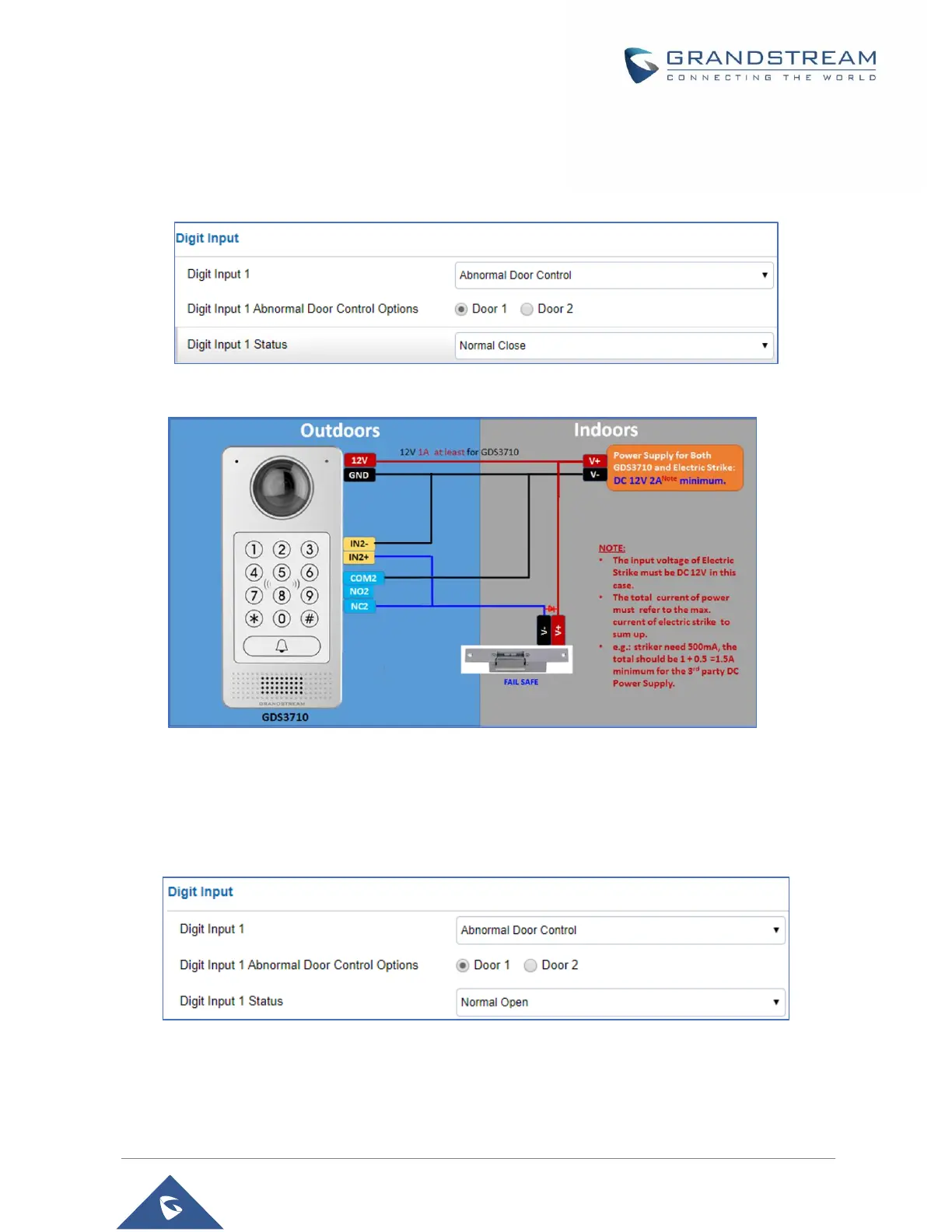

Below are some diagrams showing the correct wiring to enable this new security enhancement feature:

GDS3710 Connection: IN2 set as Normal Close and “Fail Safe” Electric Strike using 3

Party

Power Supply

Figure 30: Digital Input set as Normal close

Figure 31: “Fail safe” Electric Strike using 3rd Party Power Supply

GDS3710 Connection: IN2 set as Normal Open and “Fail Secure” Electric Strike using 3

Party

Power Supply

Figure 32: Digital Input set as Normal open
