Digital Input

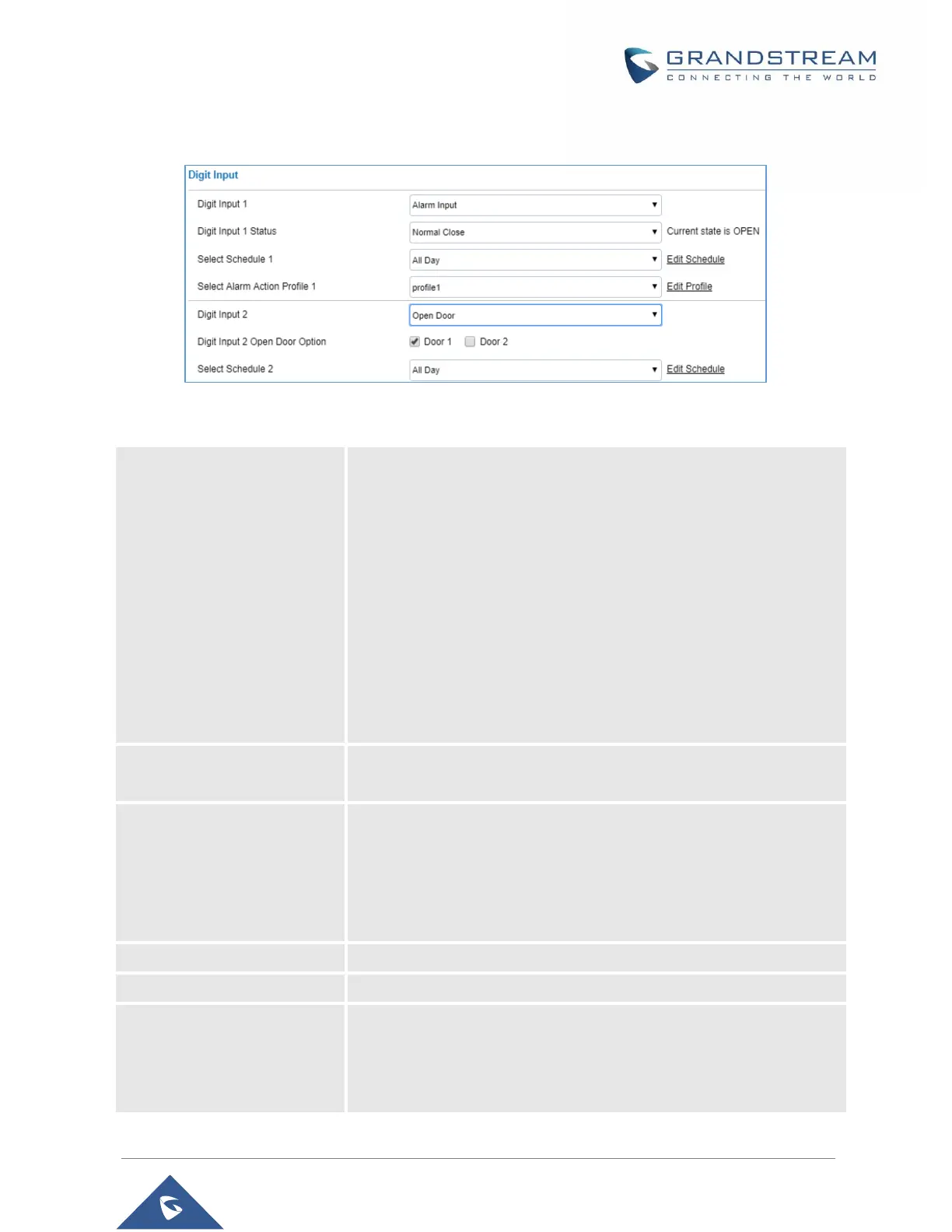

Figure 77: Digital Input
Table 23: Digital Input
Digital Input 1
Selects the Input method (alarm Input or Door Open).
Default disabled.
Digital Input Port operates in 3 Modes:
1. Alarm Input: Connect sensor to trigger alarm.
2. Open door: Connect a switch to open door from inside.
3. Abnormal Door Control: This is a major security enhancement for
GDS37xx when device be tampered to open the door abnormally.
Please check Siren alarming when door opened abnormally
section.
If Digital Input port is connected to a switch, it will not work during the
time of power outage, device booting or firmware upgrading.
Digit Input 1 Open Door
Option
• When Digital Input is set to Open door then user can select the
doors to be affected when Alarm IN 1 is triggered.
Input Digit 1 Status
• If set to Normal Open: Configured alarm will be triggered when
Digital Input Status switch from Close to Open.
• If set to Normal Close: Configured alarm will be triggered when
Digital Input Status switch from Open to Close.
By default, Input Digit 1 Status is “Disabled”.
Select Alarm Schedule 1
Selects the predefined Alarm Schedule.
Select Alarm Action Profile 1
Selects the predefined Alarm Action for Profile 1.
Digital Input 2
Selects the Input method (alarm Input or Door Open).
Default disabled.
Digital Input Port operates in 2 Modes:
1. Alarm Input: Connect various of sensor to trigger alarm.
