P a g e | 112

GDS3710 User Manual

Version 1.0.7.8

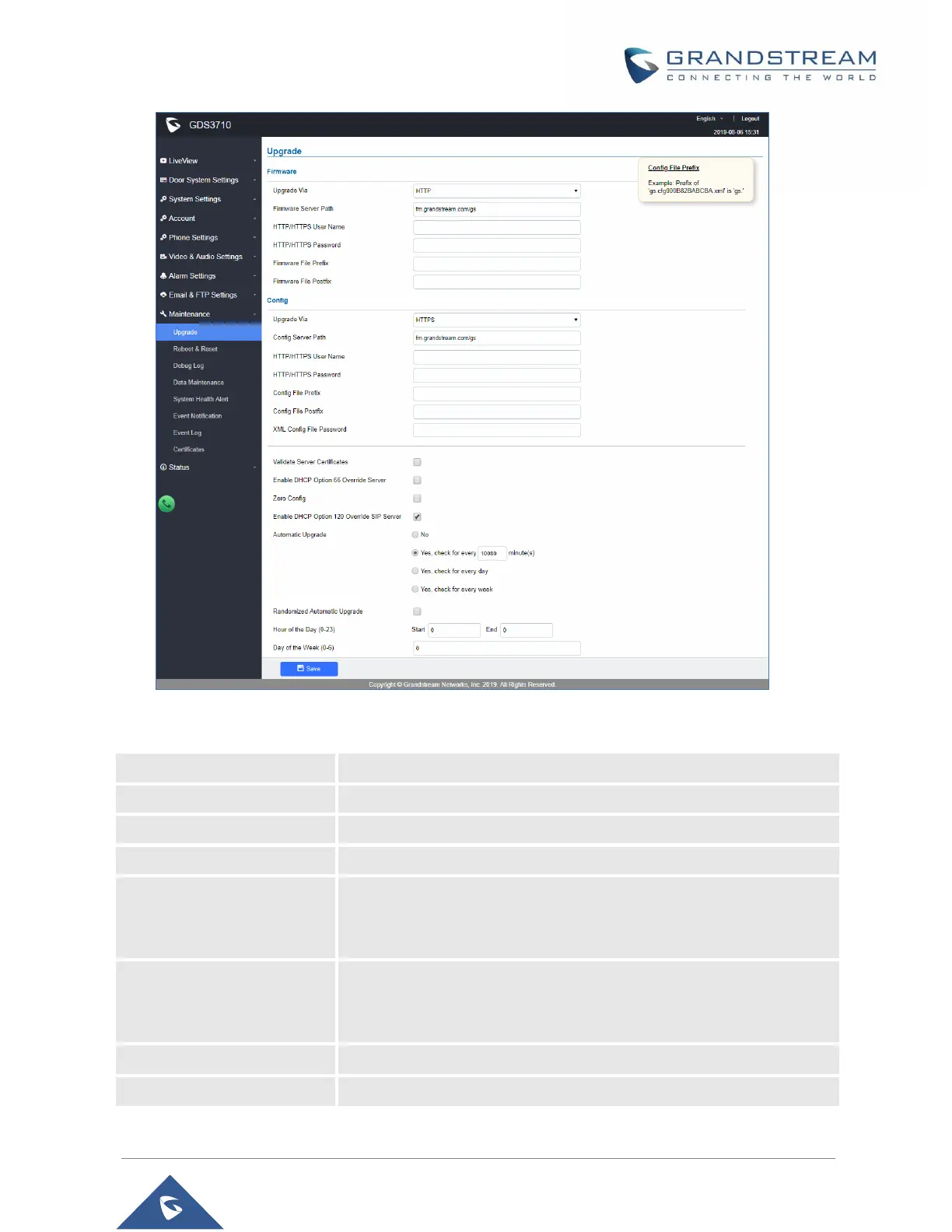

Figure 86: Upgrade Page

Table 34: Upgrade

Upgrade Via

Selects the upgrade method (TFTP, HTTP, and HTTPS).

Firmware Server Path

Configures the IP address or the FQDN of the upgrade server.

HTTP/HTTPS User Name

The user name for the HTTP/HTTPS server.

HTTP/HTTPS Password

The password for the HTTP/HTTPS server.

Firmware File Prefix

Enables your ITSP to lock configuration updates. If configured, only the

firmware file with the matching encrypted prefix will be downloaded and

flashed into the phone.

Firmware File Postfix

Enables your ITSP to lock firmware updates. If configured, only the

firmware with the matching encrypted postfix will be downloaded and

flashed into the phone.

Upgrade via

Selects the upgrade method (TFTP, HTTP, and HTTPS).

Config Server Path

Configures the IP address or the FQDN of the configuration server.
