P a g e | 46

GDS3710 User Manual

Version 1.0.7.8

Wiring Sample using PoE to power GDS3710 and 3

Party Power Supply for Electric Strike

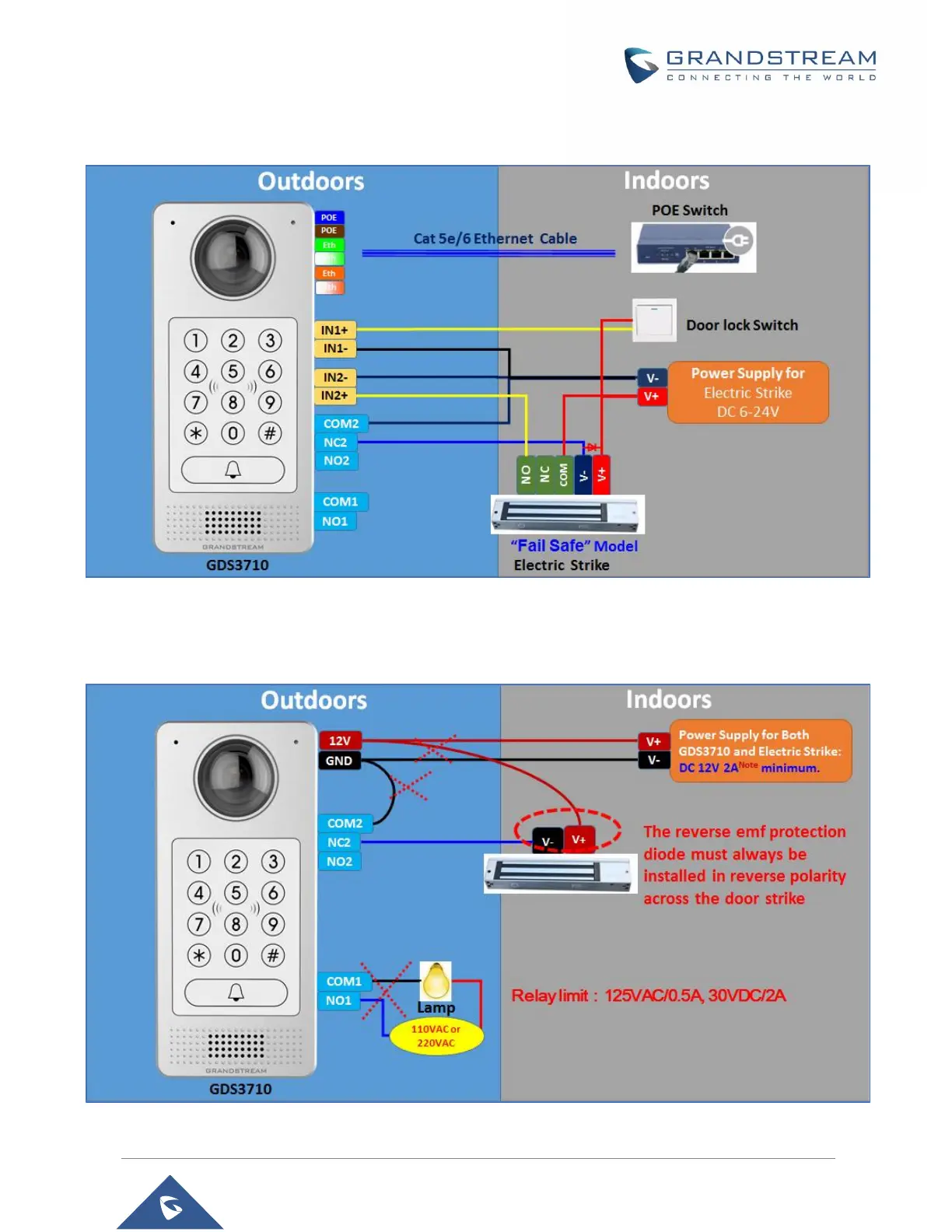

Figure 23: Wiring Sample using PoE to power GDS3710 and 3

party Power Supply for Electric Strike

Warning: The following example should be avoided when powering the electric strike.

Figure 24: Example to Avoid when Powering the Electric Strike
