Grandstream Networks GDS3710 - Certificates; Figure 92: Event Logs; Figure 93: Upload Certificate Files

To Next Page

To Previous Page

P a g e | 120

GDS3710 User Manual

Version 1.0.7.8

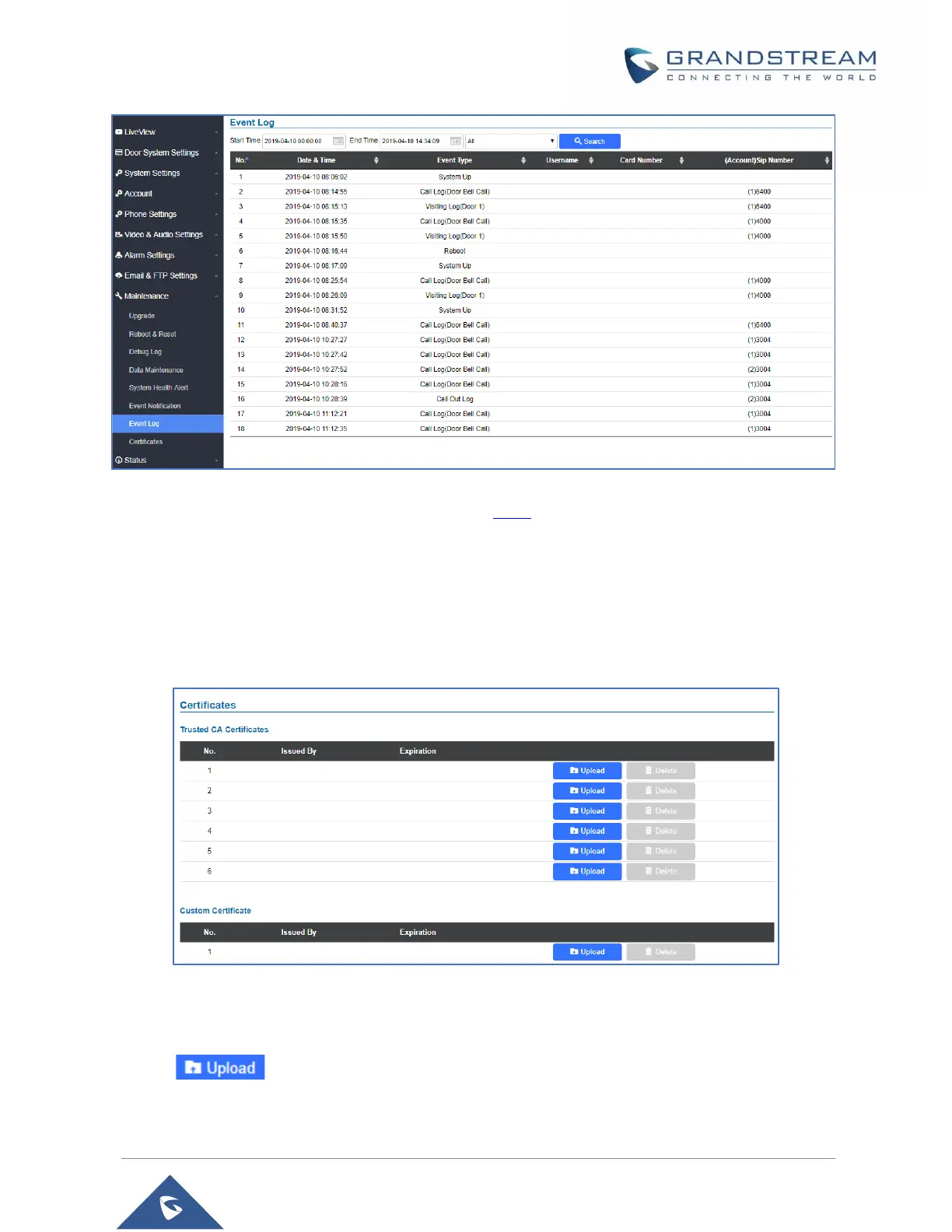

Figure 92: Event Logs

For more information about event logs, please visit this guide.

Certificates

This page allows users to upload up to 6 Trusted CA certificate files which will be trusted by the GDS during

SSL exchange.

Also users are allowed to configure the device with custom certificate signed by custom CA certificate under

the Custom Certificate section.

Figure 93: Upload Certificate files

In order to upload your Trusted CA certificate:

Click on button to upload a file and some related information to the uploaded file will be

displayed, such as “Issued by” and “Expiration date”.
