P a g e | 51

GDS3710 User Manual

Version 1.0.7.8

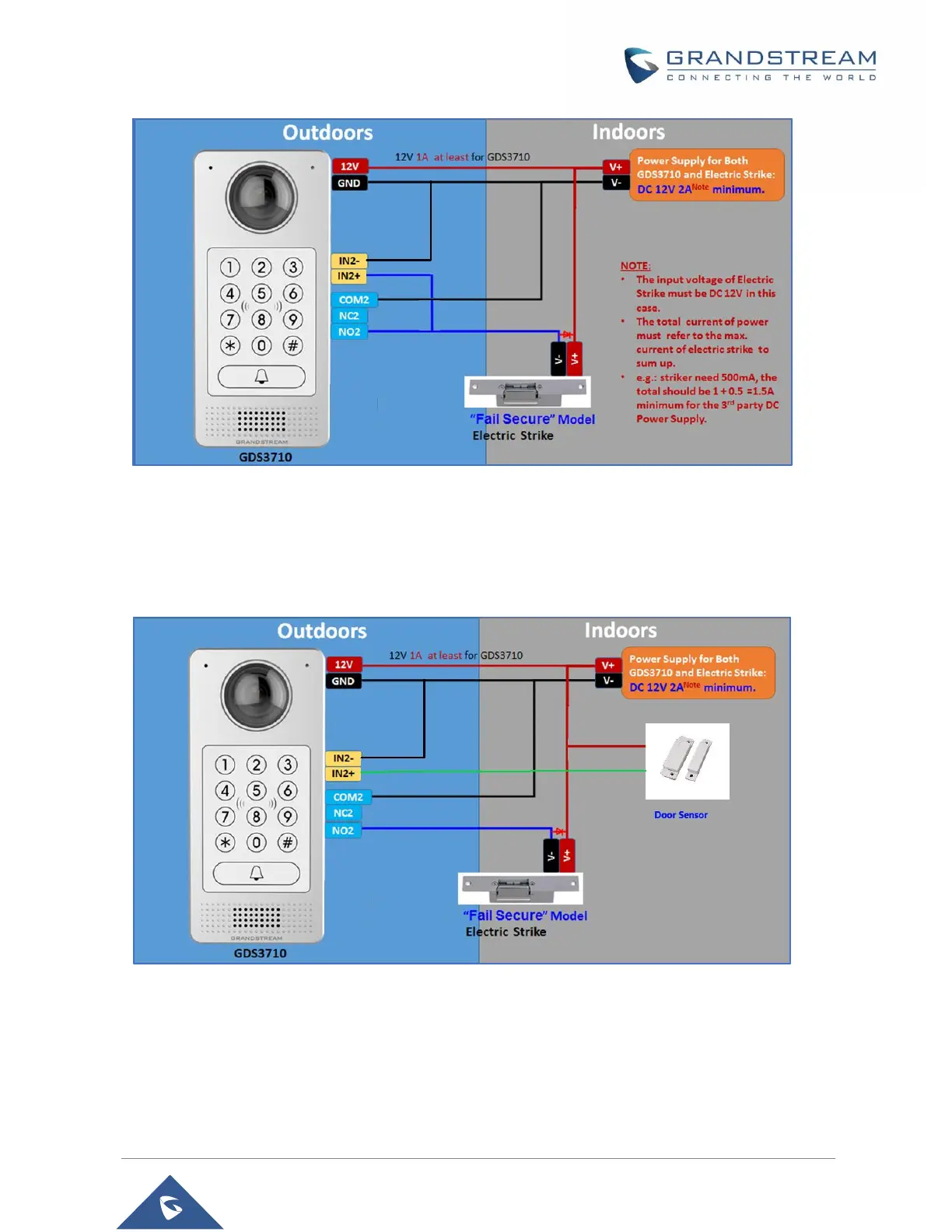

Figure 33: “Fail Secure” Electric Strike using 3rd Party Power Supply

GDS3710 Connection: IN2 set as Normal Open and “Fail Secure” Electric Strike using 3

Party

Power Supply with Door sensor

Figure 34: “Fail Secure” Electric Strike using 3rd Party Power Supply with Door Sensor
