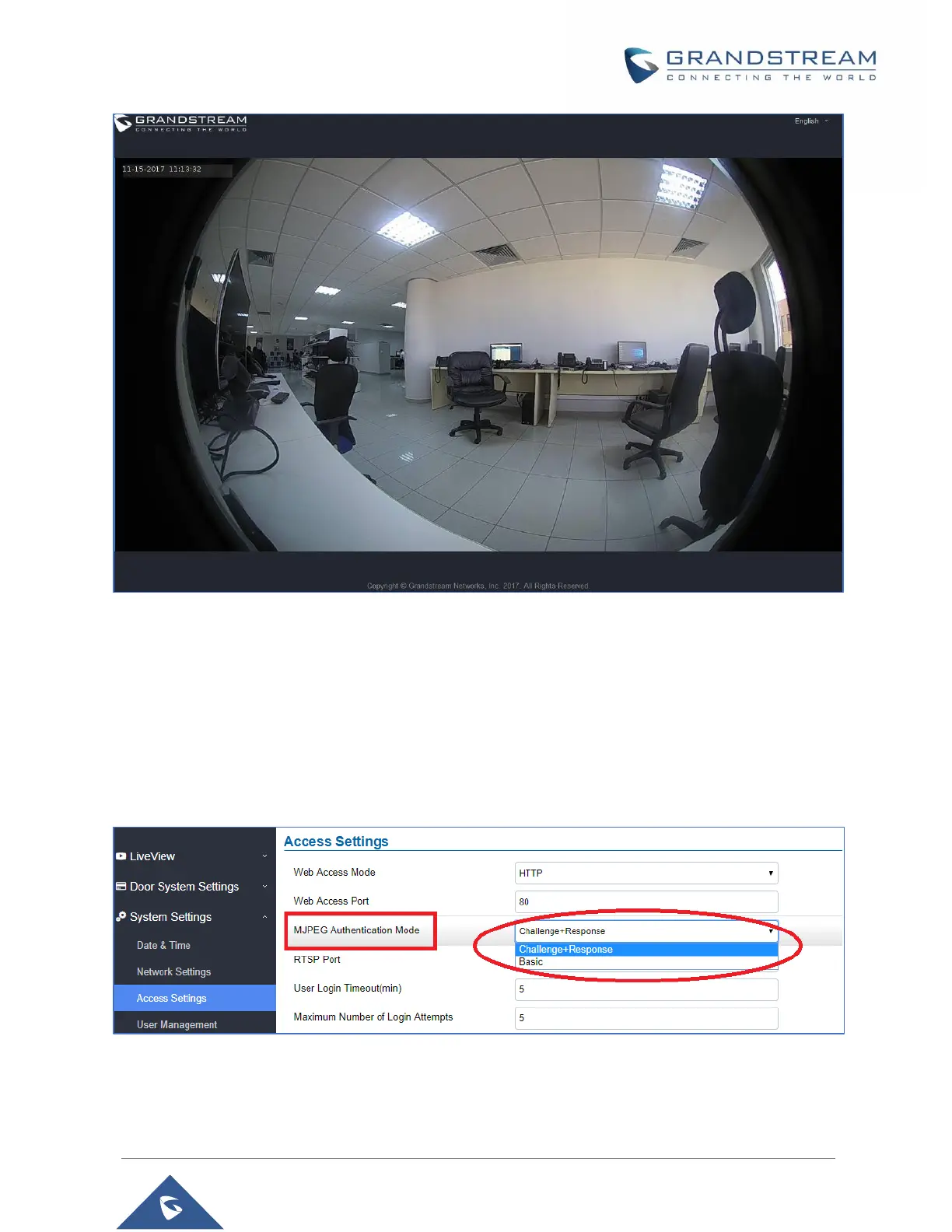

Figure 41: Snapshot view using Basic Authentication Mode

MJPEG Stream

The GDS3710 supports MJPEG Stream live viewing via HTTP API commands, this can be used without

installing the Live view browser plugin. Starting from firmware 1.0.3.34, users can deploy two methods to

retrieve MJPEG stream depending on MJPEG Authentication Mode, which can be set under following path:

Web UI ➔ System Settings ➔ Access Settings

Figure 42: MJPEG Authentication Mode

1) Challenge+Response MJPEG Authentication Mode:
