P a g e | 101

GDS3710 User Manual

Version 1.0.7.8

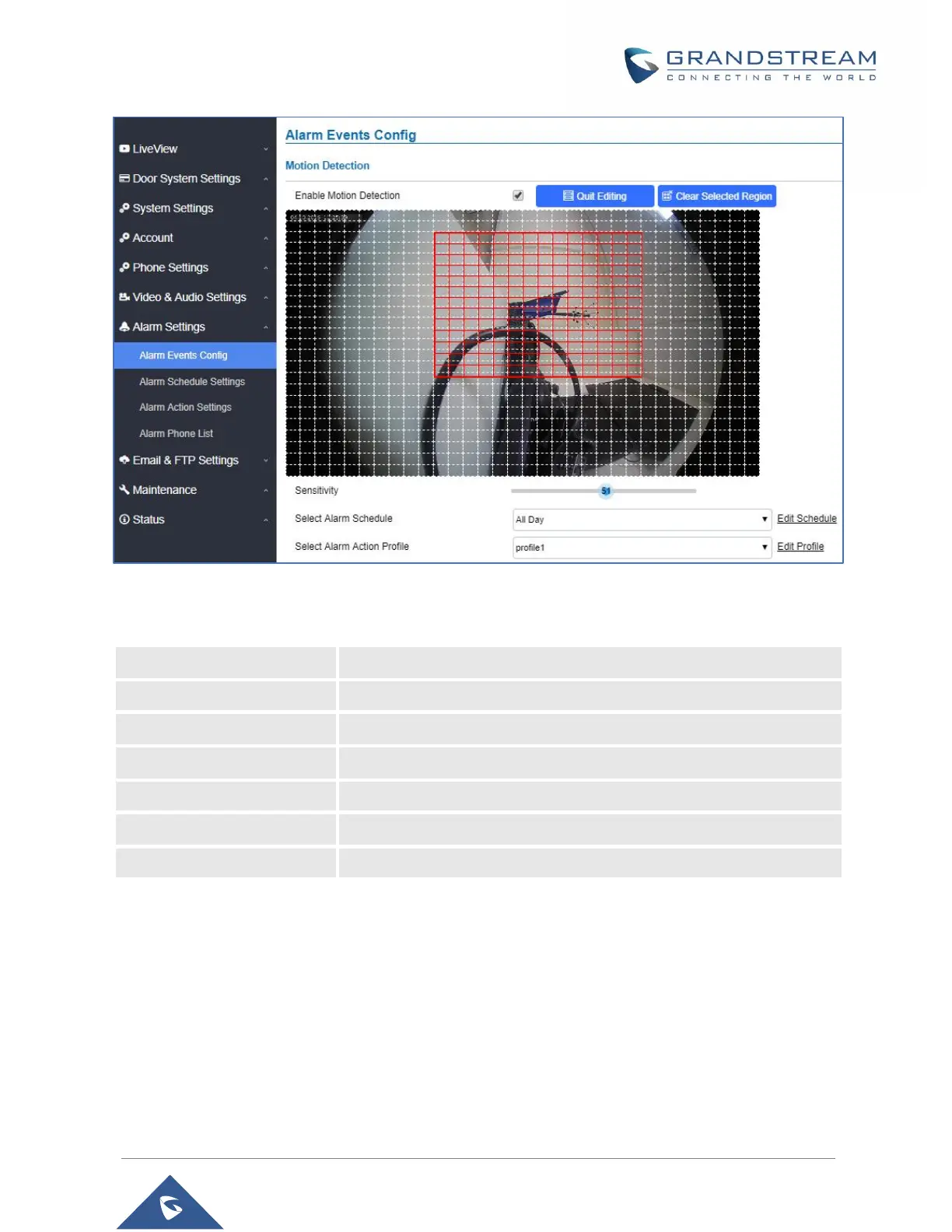

Figure 76: Region Config

Table 22: Motion Detection

Enable Motion Detection

Enables the motion detection feature.

Region Config

Configures the motion detection region.

Quit Config

Exits the motion detection region config menu.

Clear Selected Region

Selects a zone on the screen then click on “Clear” to delete the region.

Sensitivity

Specifies the region sensitivity (value between 0-100%).

Select Alarm Schedule

Selects the alarm schedule.

Select Alarm Action Profile

Selects the programmed Alarm Action profile.
