P a g e | 105

GDS3710 User Manual

Version 1.0.7.8

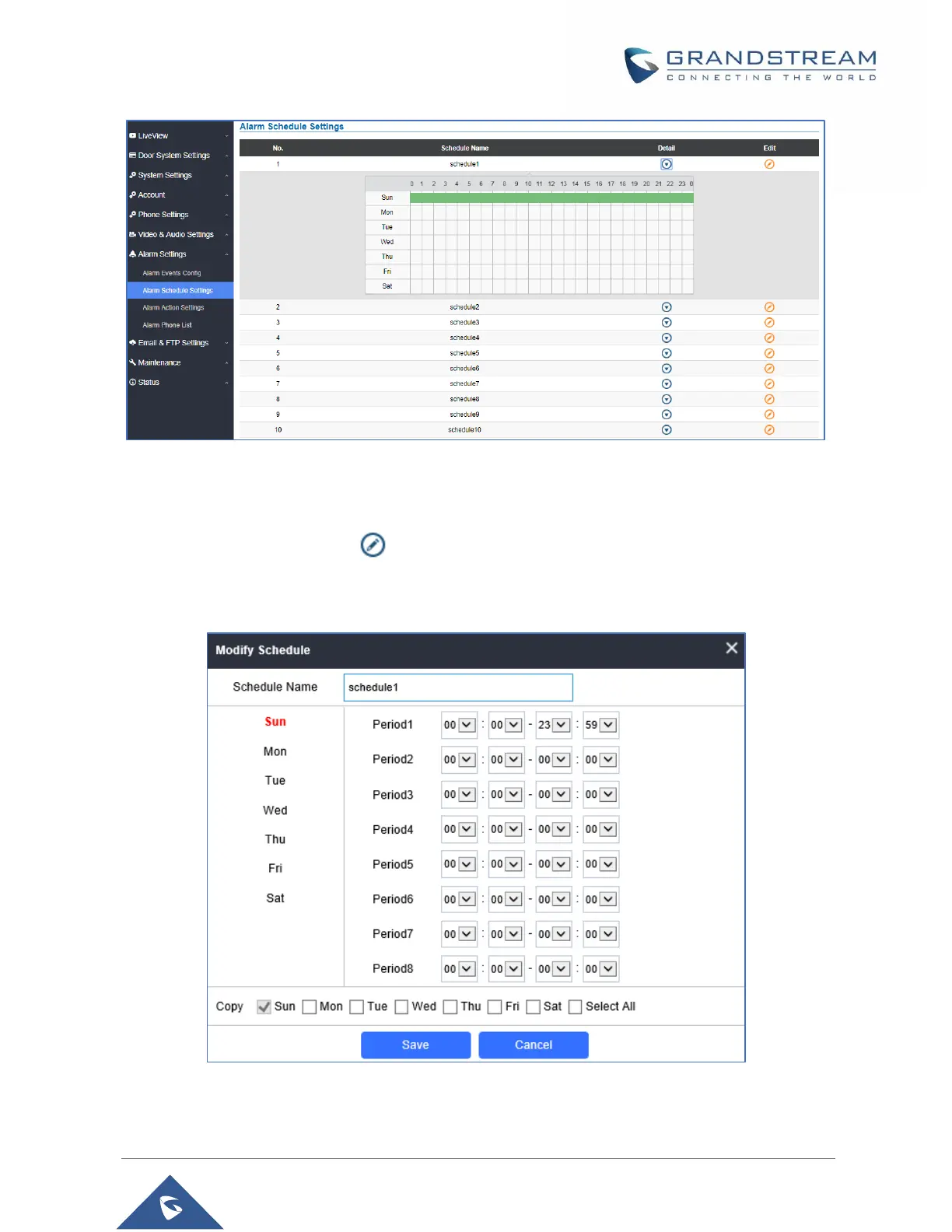

Figure 78: Alarm Schedule

GDS3710 supports up to 10 alarm schedules to be configured, with time span specified by users. User can

edit the alarm schedule by clicking button. Usually the 24 hours’ span is 00:00 ~ 23:59, which is 24

hours’ format.

Users can copy the configuration to different date during the schedule programming.

Figure 79: Edit Schedule
