P a g e | 106

GDS3710 User Manual

Version 1.0.7.8

Alarm Action Settings

This page specifies the configuration of Profile used by the Alarm Actions. A Profile is required before the

Alarm Action can take effect.

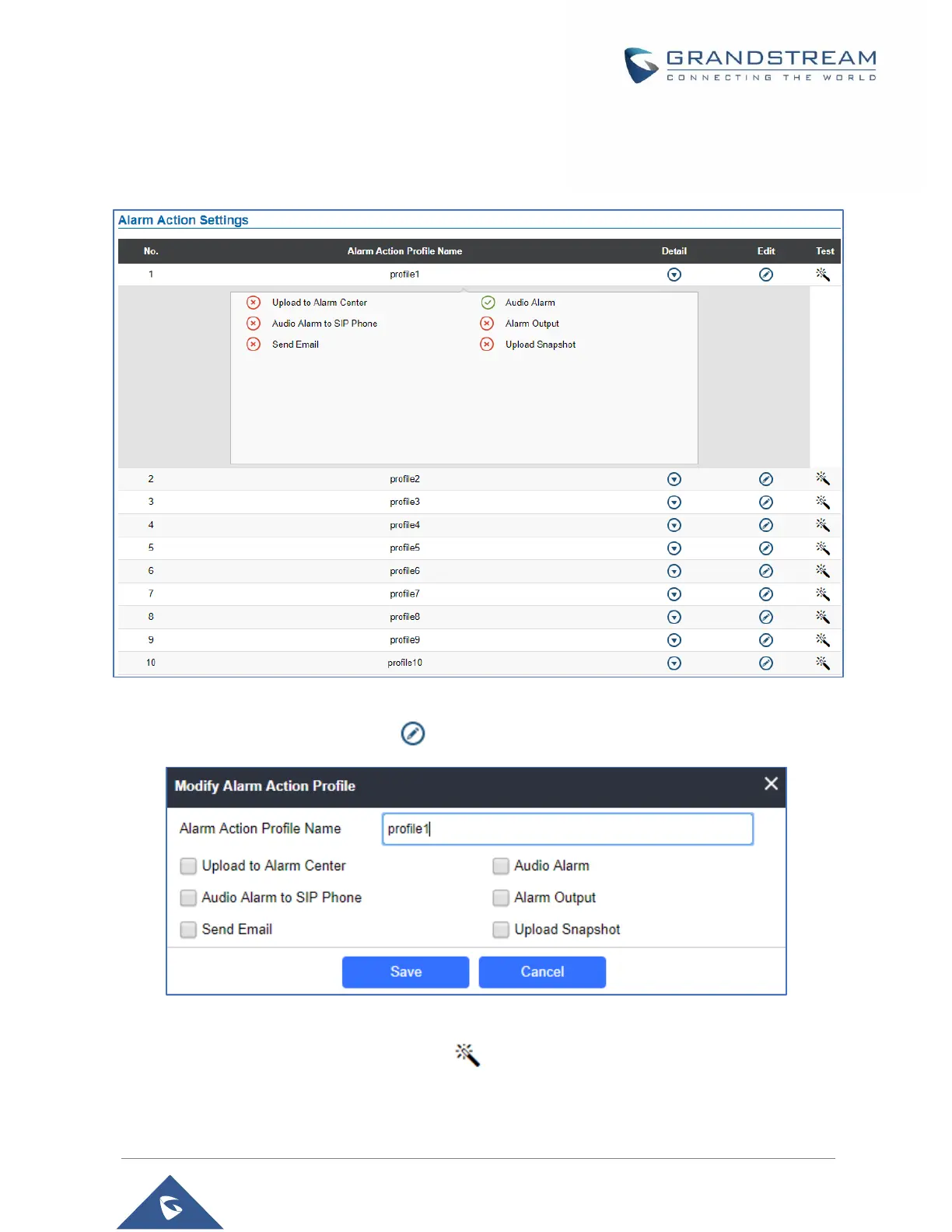

Figure 80: Alarm Action

User can edit the alarm action by clicking button, the following window will popup.

Figure 81: Edit Alarm Action

To test an alarm action profile, users can click on button and the GDS will initiate all actions specified

on the select alarm profile.
