P a g e | 129

GDS3710 User Manual

Version 1.0.7.8

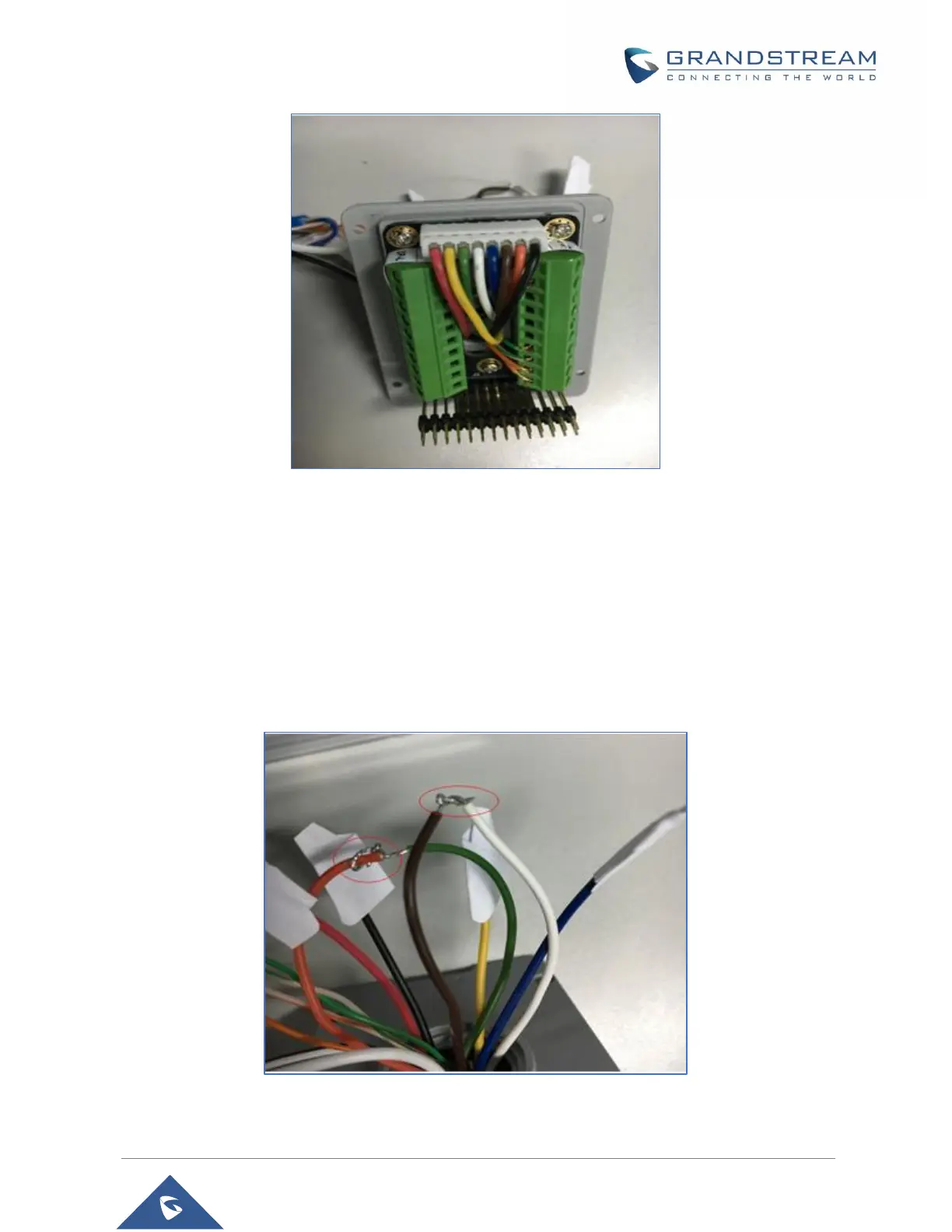

Figure 98: Wiegand Interface Cable

To perform hard factory reset to the GDS3710, please refer to following steps:

1. Power OFF the GDS3710.

2. Take the provided Wiegand cable, connect (or shorting) the related color wires as illustrated on the

following picture. Please make sure the connection is correct and solid:

▪ Connect WHITE and BROWN cable together.

▪ Connect GREEN and ORANGE cable together.

Figure 99: Wiegand Cable Connection
