P a g e | 94

GDS3710 User Manual

Version 1.0.7.8

Video & Audio Settings

The audio and videos settings allow users to configure the video / audio codecs, videos resolution, CMOS

settings and audio related settings.

Video Settings

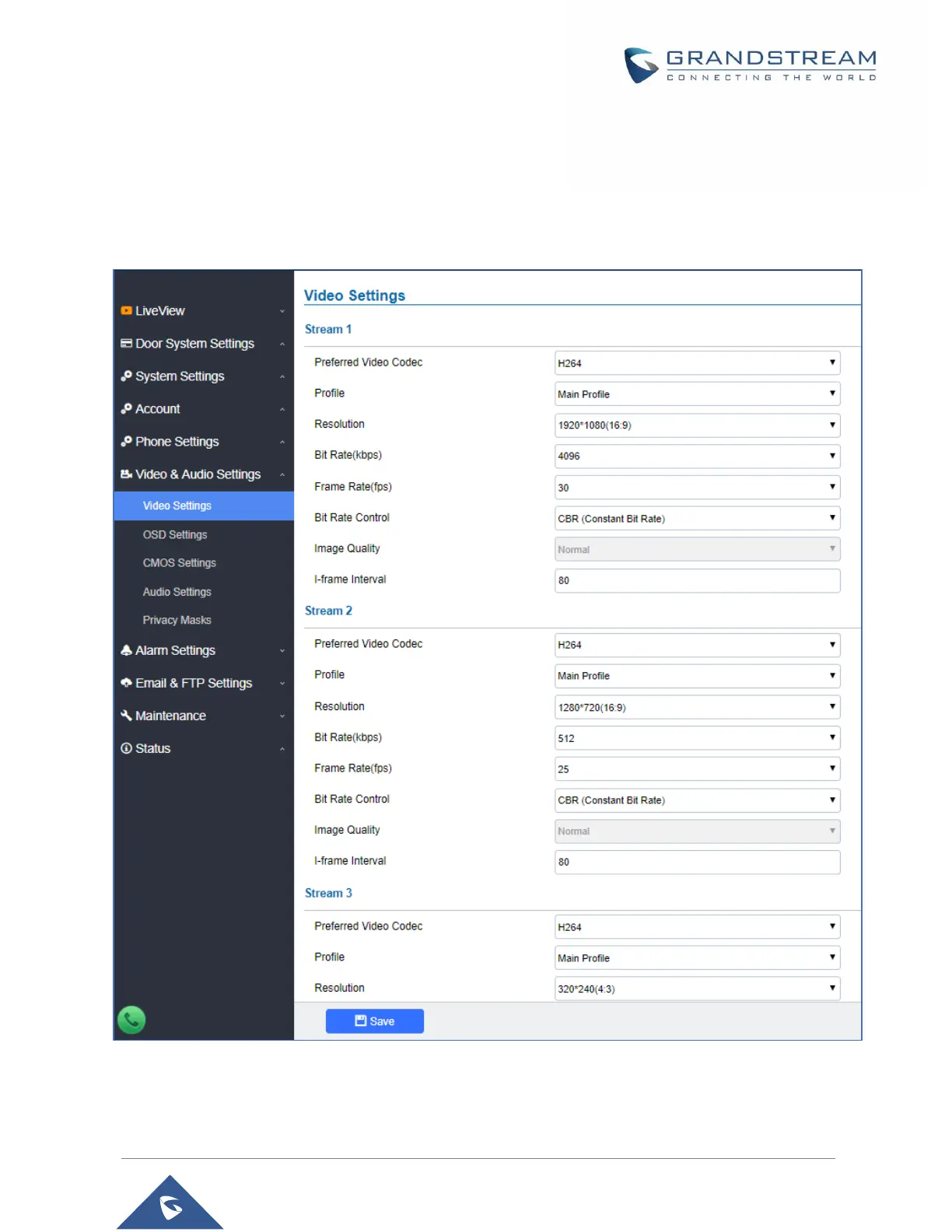

Figure 70: Video Settings Page
