Grandstream Networks GDS3710 - Debug Log; Table 35: Reset & Reboot; Figure 87: Reset & Reboot Page

To Next Page

To Previous Page

P a g e | 114

GDS3710 User Manual

Version 1.0.7.8

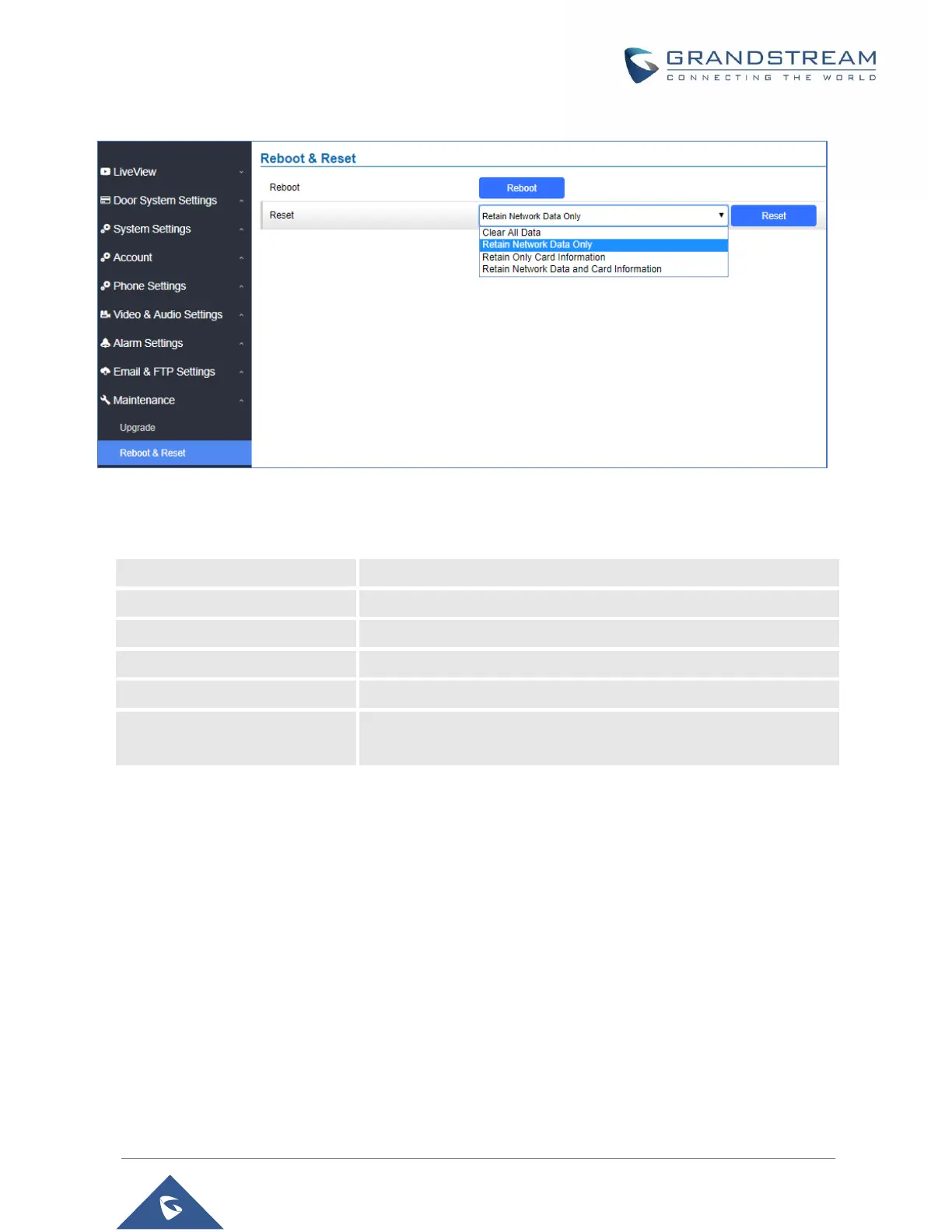

Figure 87: Reset & Reboot Page

Table 35: Reset & Reboot

Reboot

When clicked, the GDS3710 will restart (soft reboot).

Reset

There are two options for the reset function.

Clear All Data

All data will be reset, GDS3710 will be set to factory default.

Retain Network Data Only

All data will be erased except for Network data like IP address…

Retain Only Card Information

All data will be erased except for cards information.

Retain Network Data and Card

Information

All data will be erased except for Network Data and Card Information.

Debug Log

This page allows user to configure SYSLOG to collect information to help troubleshooting issues with

GDS3710.
