Grandstream Networks GDS3710 User Manual

P a g e | 70
GDS3710 User Manual
Version 1.0.7.8
• Universal PIN for Operation of Doors:

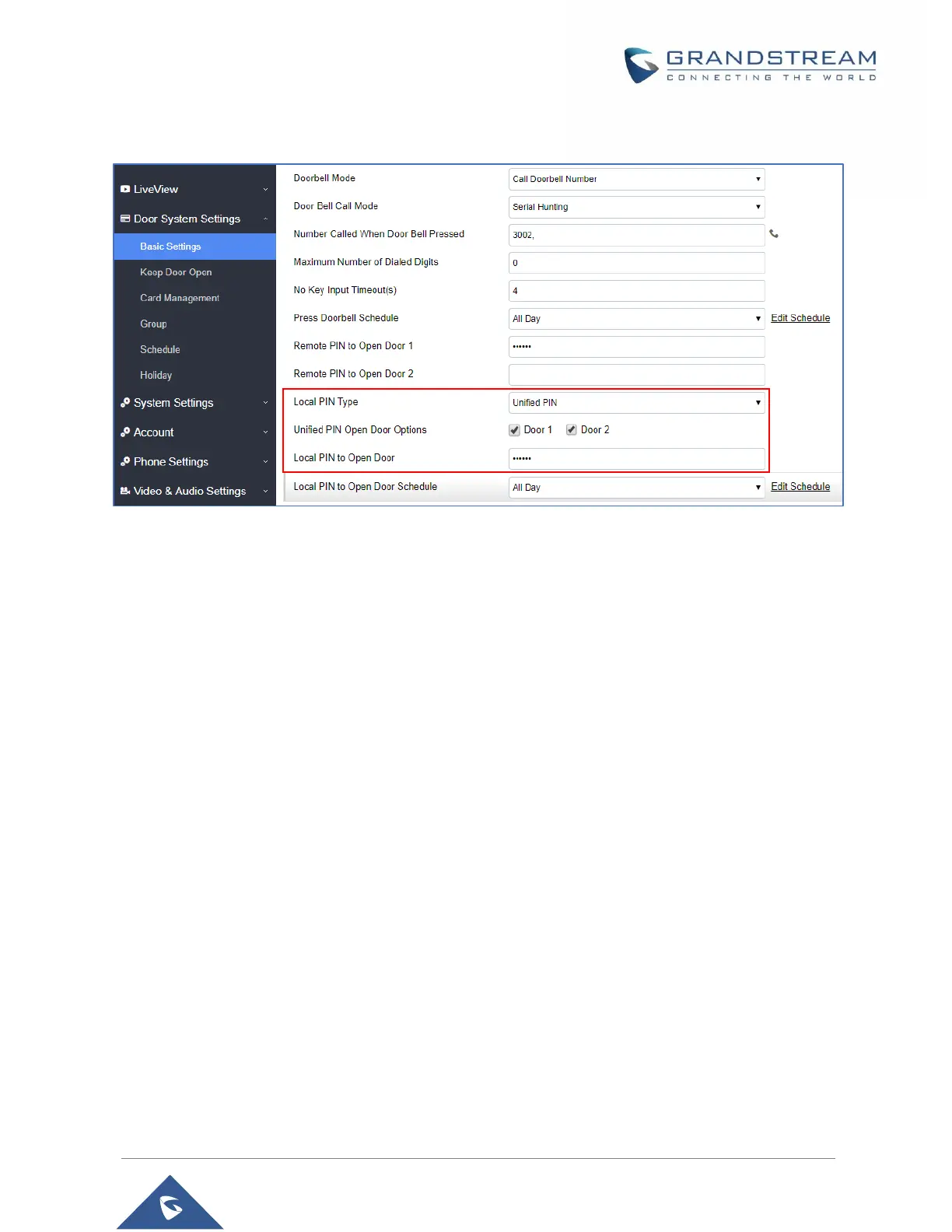

Figure 48: Universal Local PIN
If Unified PIN (Universal PIN) is configured to open door, then which door can be controlled by the PIN is
configured in the UI once “Unified PIN” selected.
For example, like above screenshot, if this universal PIN is set to open both Door1 and Door2, but due to
previous “Control Option” set to open Door1, and “Wiegand Control” set to open Door2, therefore the final
result will be the INTERSECT result of both sets with condition qualified.
• Remote PIN to Operation of Doors:
For remote PIN to open door, the PIN can be configured in example down below.
The PIN can be different for Door1 and Door2 and has to be configured correctly in related IP Phone which
will be used to operate “One Key Open Door”.
If BOTH doors need to be opened at the same time, then both Door1 and Doo2 has to be configured with
exactly SAME password or PIN as DTMF open door.
Note: For enhanced security, When call is initiated from GDS then only the numbers existing in “Number
Called When Door Bell Pressed”, “Account White Lists” or “Card Management” will be able to use DTMF
PIN to open door remotely.

Grandstream Networks GDS3710 Specifications

General

Brand	Grandstream Networks
Model	GDS3710
Category	Intercom System
Language	English
