P a g e | 45

GDS3710 User Manual

Version 1.0.7.8

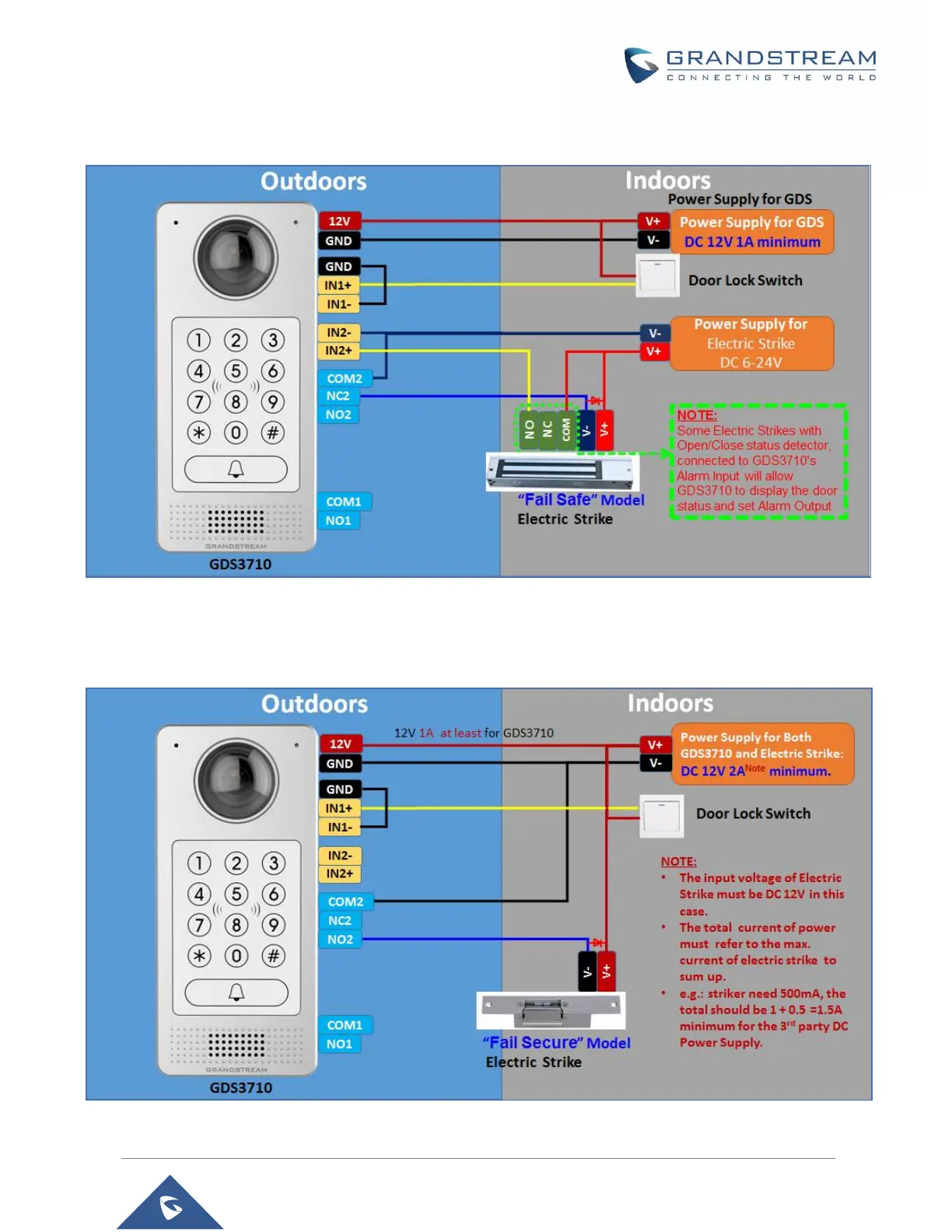

Wiring Sample using 3

Party Power Supply

Figure 21: 3

party Power Supply Wiring Sample

Wiring Sample using Power Supply for both GDS3710 and Electric Strike

Figure 22: Power Supply used for both GDS3710 and Electric Strike
