P a g e | 87

GDS3710 User Manual

Version 1.0.7.8

Account 1 - 4

This page allows the administrator to configure the SIP account basic and advanced settings for each SIP

account:

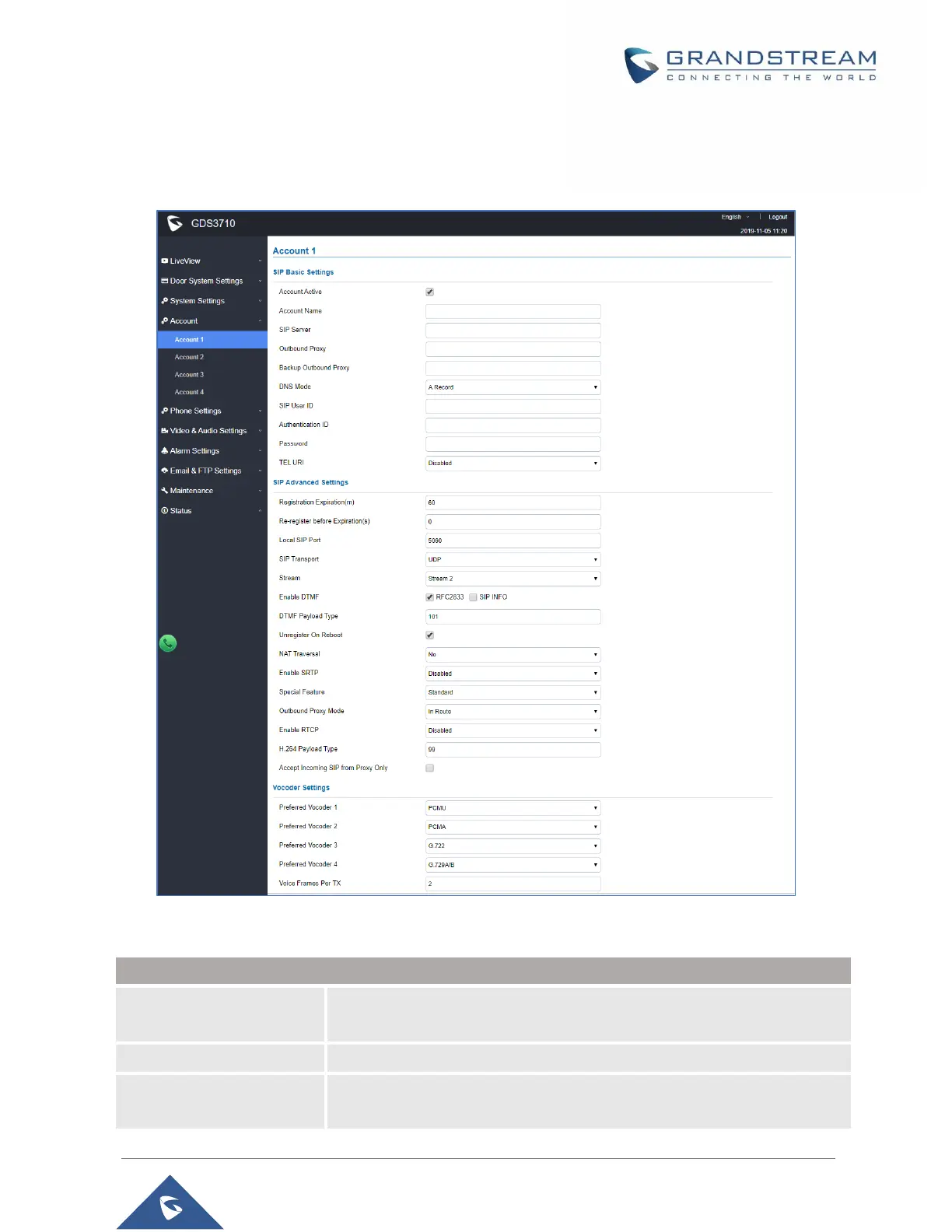

Figure 66: SIP Account Settings Page

Table 15: SIP Account Basic & Advanced Settings

SIP Basic Settings

Account Active

This field indicates whether the account is active.

Default setting is “Yes”.

Account Name

Configures the SIP account name used for identification.

SIP Server

Configures the FQDN or IP of the SIP server from VoIP service provider or

local IPPBX.
