REPLACEMENT PROCEDURES
6.2 Removing the Y Rail Cover

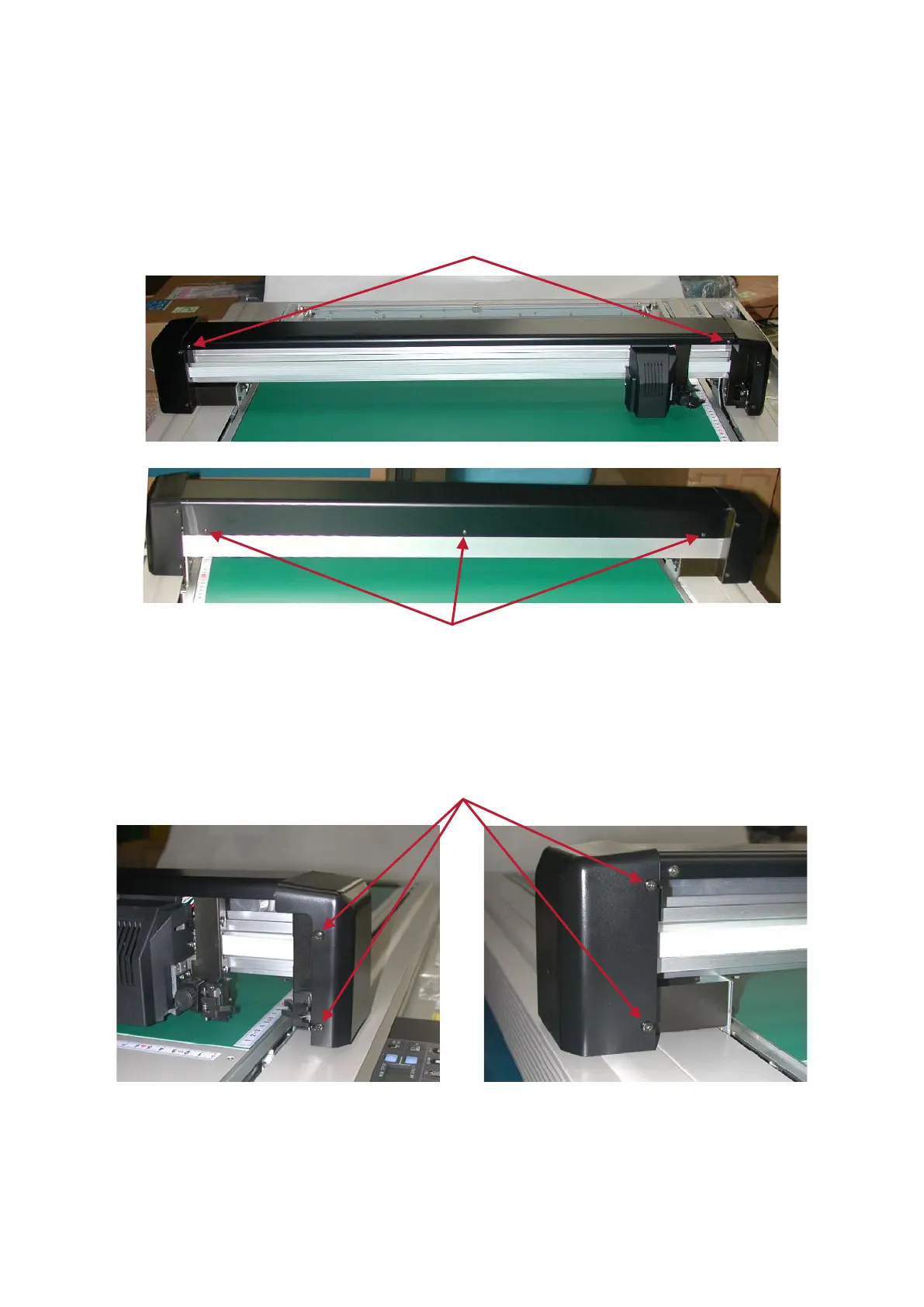

Remove the M3L6 binding head screws securing the Y Rail Cover at five locations (two locations on the
pen block side and three locations on the opposite side), in addition to the Rail Cover.
To replace the Rail Cover, reverse the above procedure.
M3L6 binding head screws
M3L6 binding head screws
6.3 Removing the Front and Rear Y End Covers
Unfasten the M3L8 binding head screws securing the Front and Rear Y End Covers at four locations
each, and then remove the Front and Rear Y End Covers.
To replace the Front and Rear Y End Covers, reverse the above procedure.
