REPLACEMENT PROCEDURES
6.20 Measure Seal Pasting Position (FC4200-60)

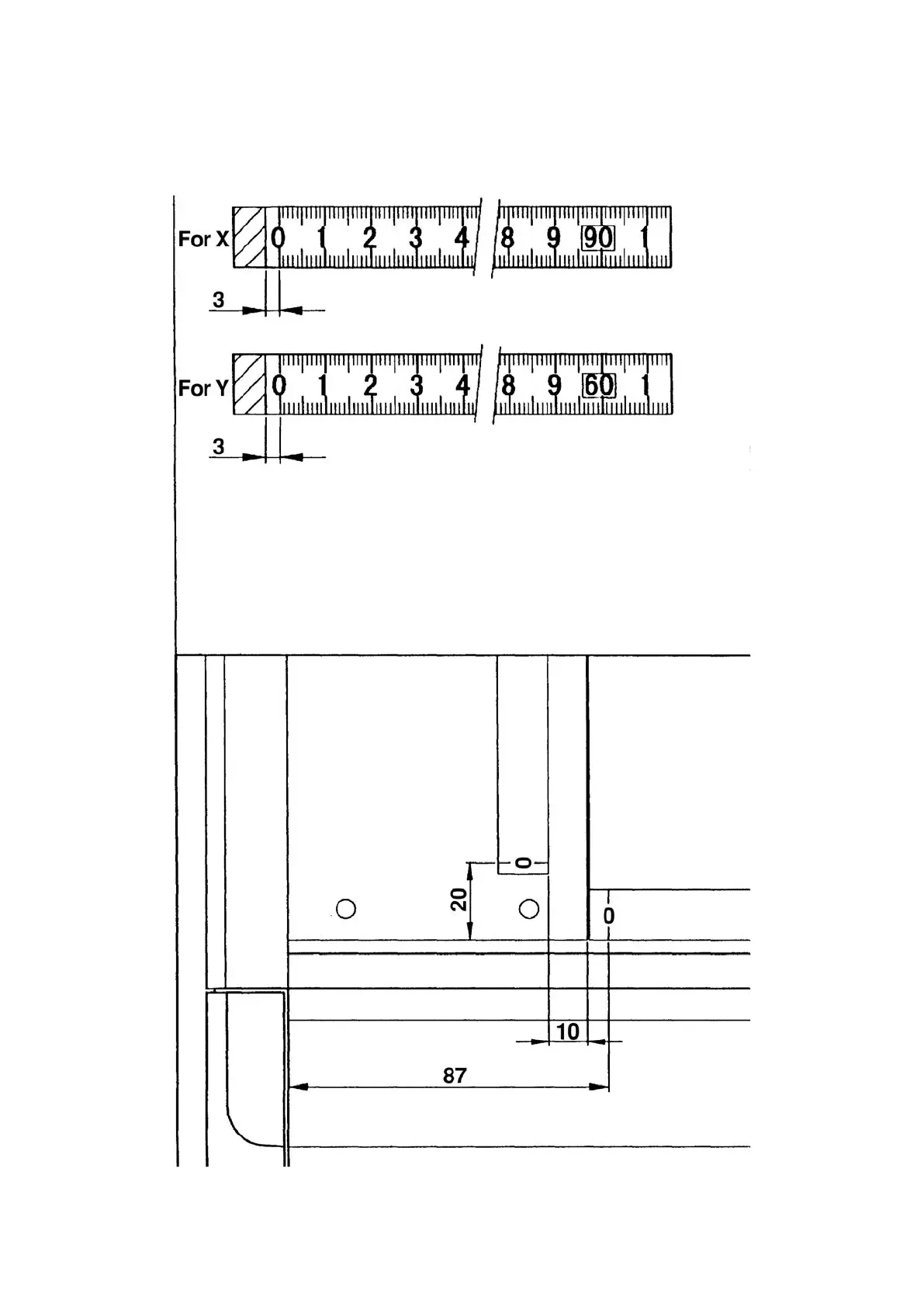

Cut the measure to the length shown below, then paste it into place.
Pasting
X: Paste the measure at the position at which the 0 on the measure is 5 mm from
the left edge of the X Rail along the X-axis, and the measure is vertically aligned
with the honeycomb edge.
Y: Paste the measure at the position at which the 0 on the measure is 20 mm from
the honeycomb edge vertically, and the distance along the X-axis is 10 mm from
the edge of Panel L.
Termination 915 mm
Termination 615 mm
