FC4200-UM-251-03-9370 48
ELECTRICAL SECTION
7.13 Recording Adjustment Data

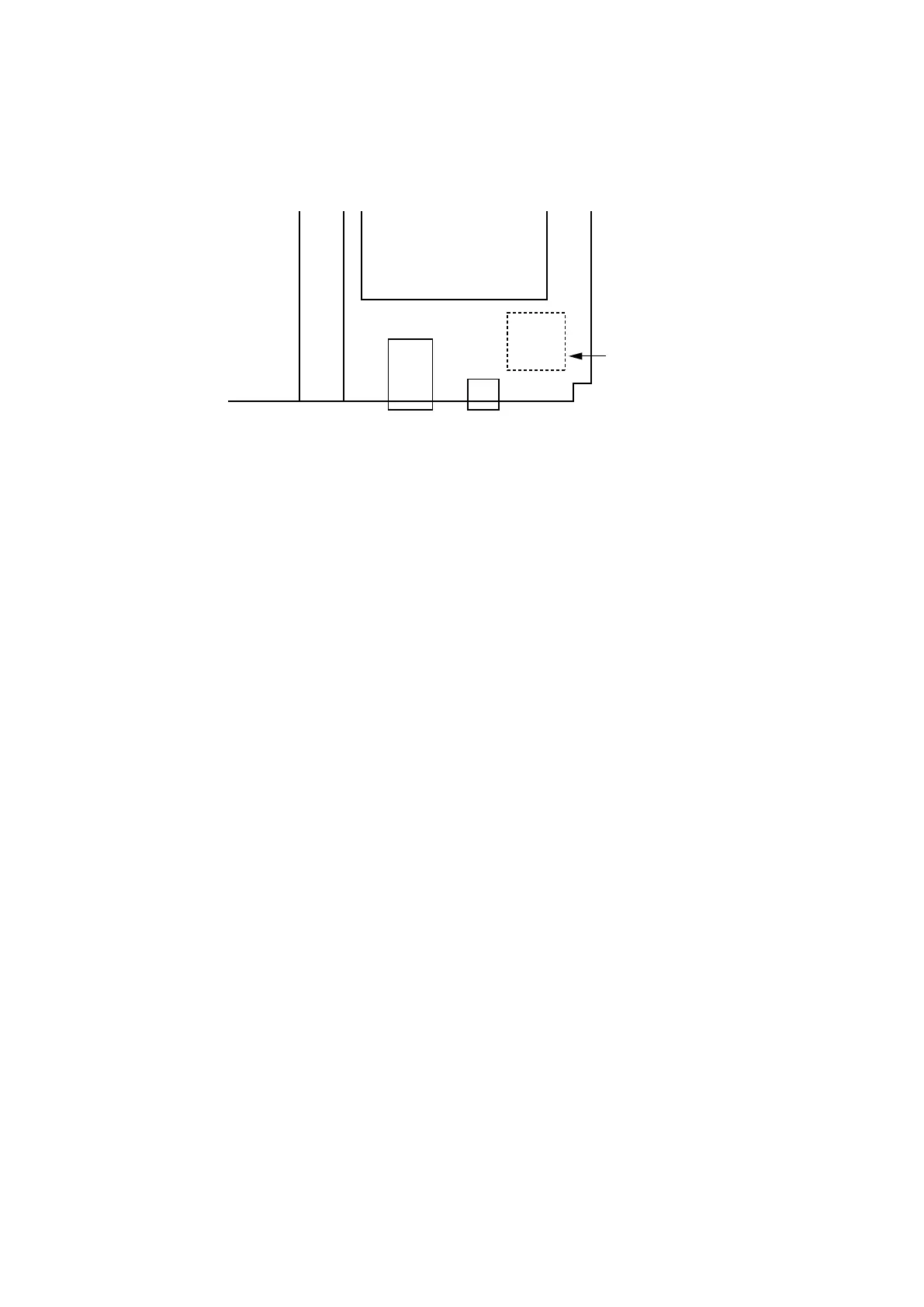

After completing the adjustment work, record the adjusted values at the position in the electrical box
shown below.
Power supply
Inlet SW
Record position
Main board
The contents of an example record are shown below.
88, 308, 562 Pen pressure adjusted values
84, 305, 559 2nd Pen pressure adjusted values (FC4210-60 only)
Y = +4, H = 0 Pen exchange adjusted values
X = +10, Y = 0 Distance accuracy adjusted values
X = 65, Y = 60 Gain adjusted values
