FC4200-UM-251-03-9370 33
REPLACEMENT PROCEDURES
6.23 Replacing the Main Board
Open the main control box.

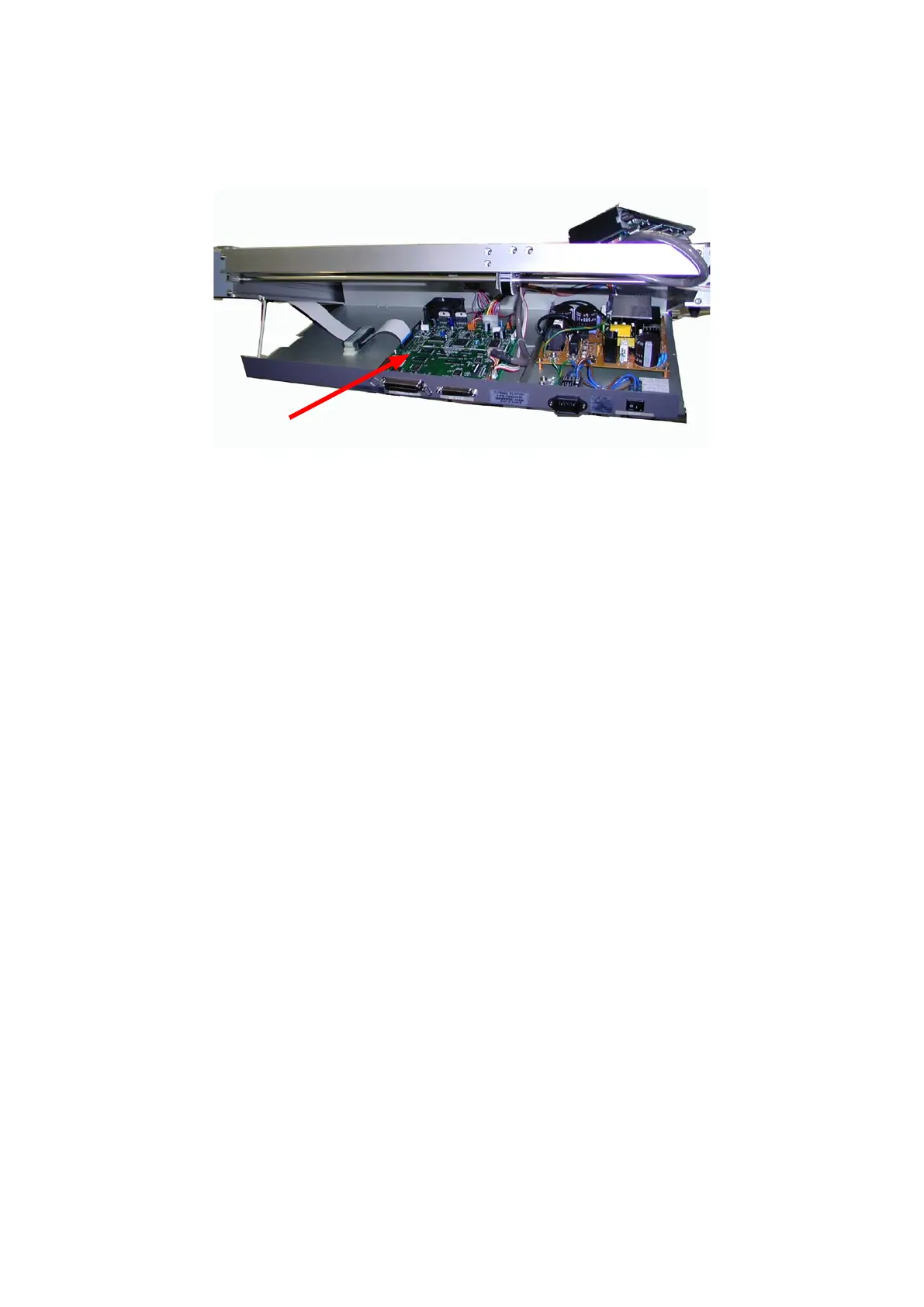

Main Board
Disconnect all cables from the main board.
Remove the all screws securing the main board.
To replace the main board, reverse the above procedure.
Execute the adjustment item of chapter 7-14.
