FC4200-UM-251-03-9370 25
REPLACEMENT PROCEDURES
6.15 Setting the Origin Position (FC4200-50)

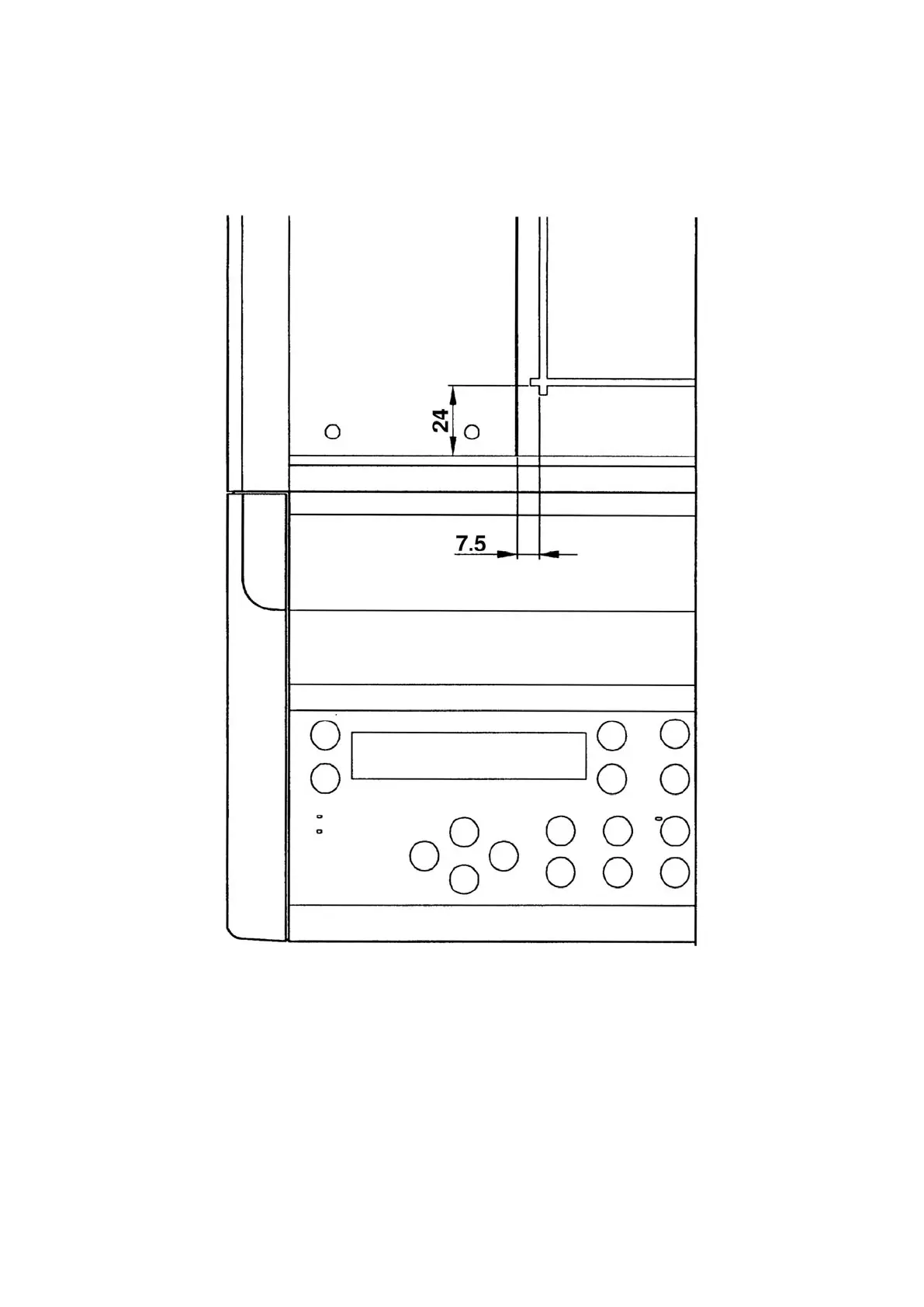

Adjust the drawing origin to a position (7.5 mm, 24 mm) from the printing lines of the electrostatic
adhesion panel.
To set the origin (or home position), follow the procedure in Section 7.8, “Adjusting the Home Position.”
