FC4200-UM-251-03-9370 31
REPLACEMENT PROCEDURES

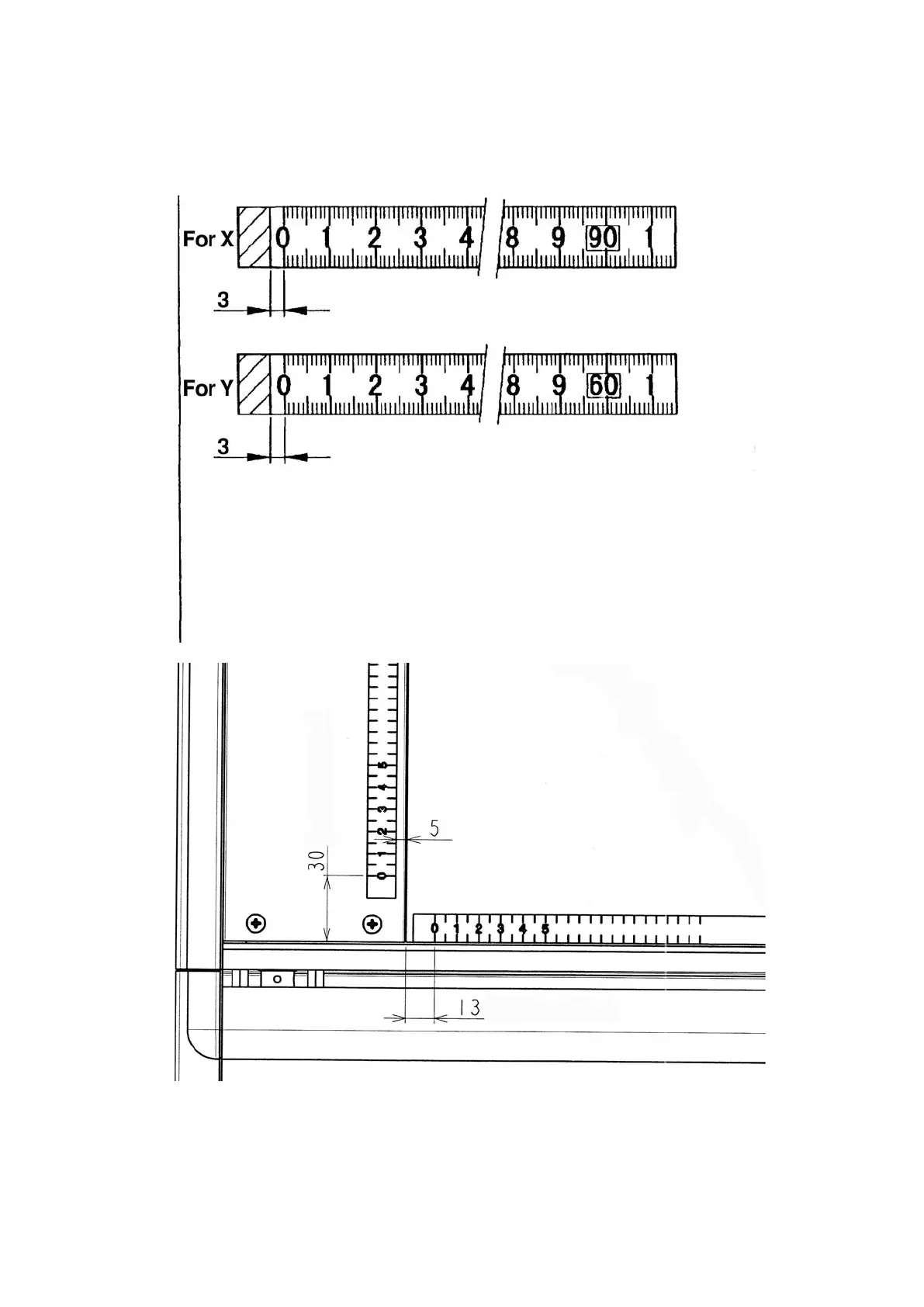

6.21 Measure Seal Pasting Position (FC4210-60)
Cut the measure to the length shown below, then paste it into place.
Pasting
X: Paste the measure at the position at which the 0 on the measure is 13 mm from
the left edge of the honeycomb edge the X-axis, and the measure is vertically
aligned with the honeycomb edge.
Y: Paste the measure at the position at which the 0 on the measure is 30 mm from
the honeycomb edge vertically, and the distance along the X-axis is 5 mm from
the edge of Panel L.
Termination 900 mm
Termination 620 mm
To Next Page
