ELECTRICAL SECTION

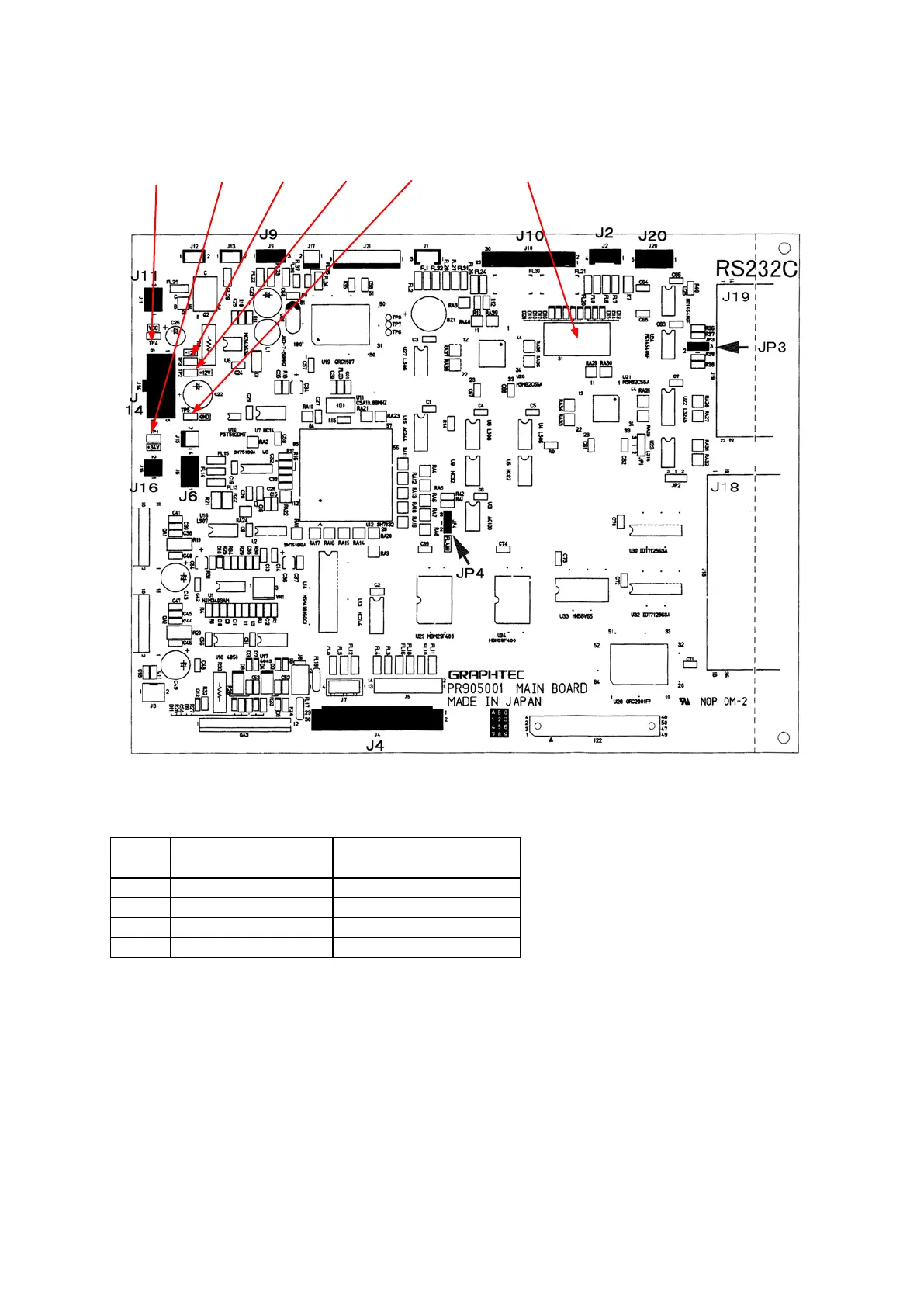

7.15 Location of Parts on the Main Board
TP4 DIP SWTP1 TP3 TP2 TP5
Centronics
Checking Voltage Levels
The output voltage levels
Main Board
Pin No. Output valtage Permissible range
TP1 +34V +33.5V to +34.5V
TP2 +12V +11.5V to +12.5V
TP3 -12V -11.5V to -12.5V
TP4 +5V +4.9V to +5.1V
TP5 GND 0V
