6 – 12
Registration mark pattern 1 Registration mark pattern 2
Origin
Origin

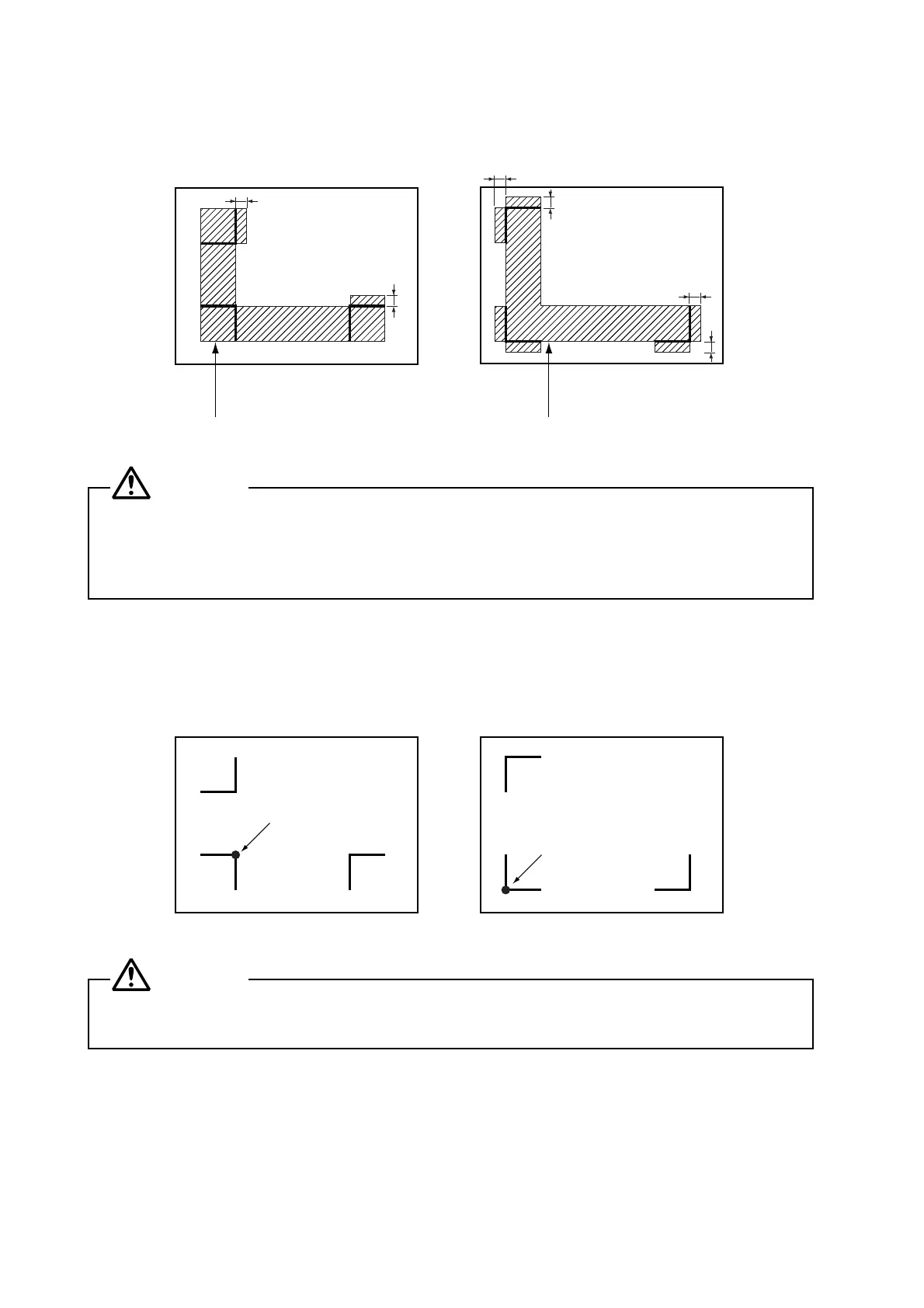

(2) The Reading Area Required for Registration Mark Detection
The figures below illustrate the reading area that this plotter requires for detecting registration marks.
CAUTION
• Do not plot anything except registration marks within the registration mark reading area.
• If dirt, dust, or other foreign matter is adhered to the medium, the plotter may recognize it as a
registration mark.
• Be sure to use only black ink for plotting registration marks.
(3) The Position of the Origin Point
After registration marks have been recognized, this plotter’s origin point for plotting will be positioned
as shown in the figures below.
CAUTION
The origin point of plotting that is output by the software application must be adjusted to match the
origin of the registration marks.
a
a
a
a
a
a
a = 6 mm a = 6 mm
Registration mark pattern 1 Registration mark pattern 2
Registration mark reading range Registration mark reading range
To Next Page
