GRAPHTEC FC4200-50 - Specifying RS-232 C Interface Conditions; Specifying the RS-232 C Interface Conditions

10 – 3
10.4 Specifying the RS-232C Interface Conditions
Be sure to set the interface conditions to identical settings at both your software application and at the
plotter.

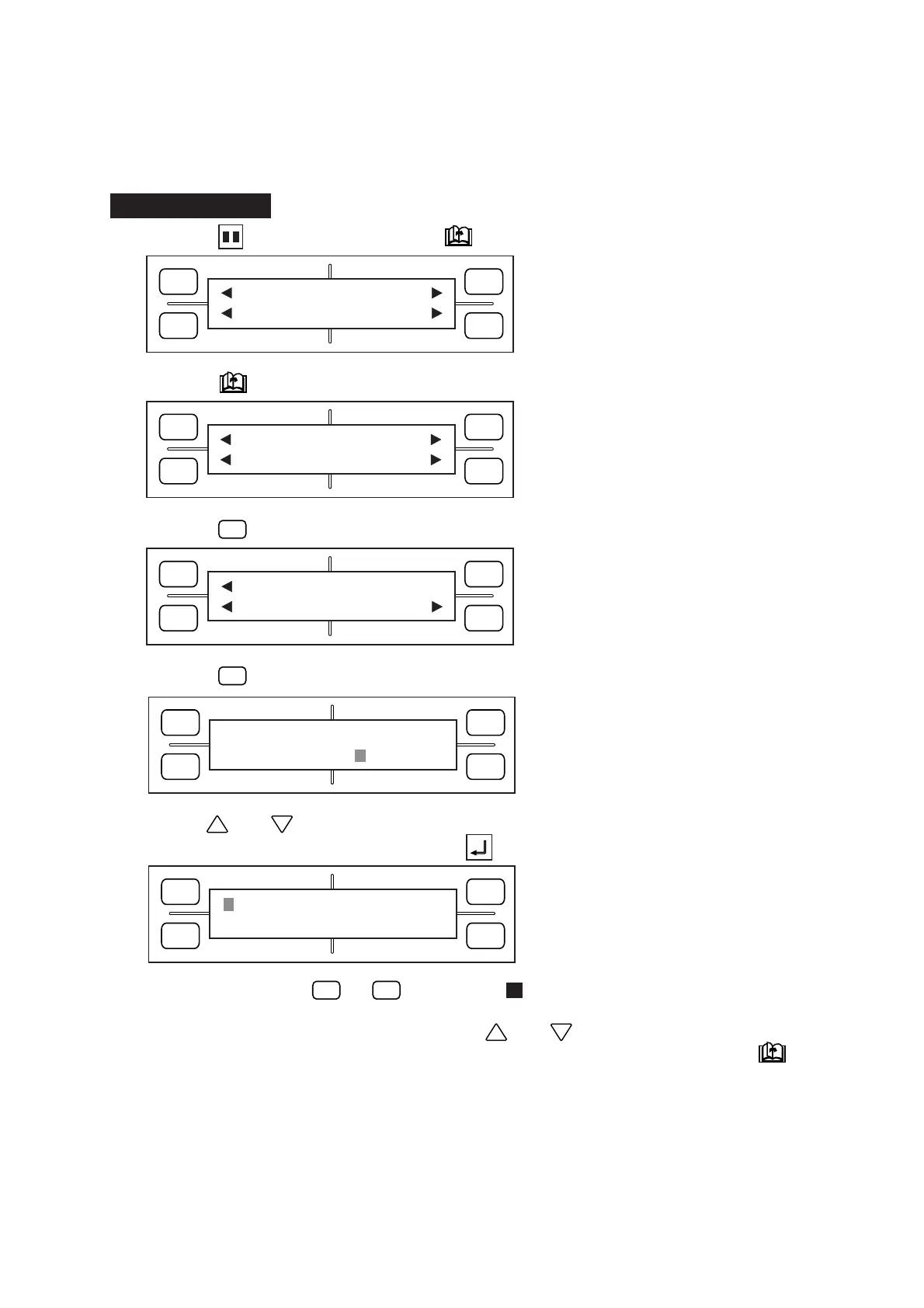

Setting Procedure
(1) Press the PAUSE key, then press the NEXT PAGE key until the menu below appears.
(2) Press the NEXT PAGE key to display the menu below.
(3) Press the
F1
(INTERFACE) key to display the menu below.
(4) Press the
F2
(RS-232C) key to display the menu below.
(5) Use the and POSITION keys to display the COND No. corresponding to the set of interface
conditions you wish to change, then press the ENTER key to display the menu below.
(6) Use the function keys (
F1
to
F4
) to move the blinking cursor to the parameter you wish to
change.
To actually change the displayed setting, use the and POSITION keys.
If you do not wish to change the settings for the selected COND No. at this time, press the NEXT
PAGE key.
FORCE
SPEED
OFFSET
QUALITY
F1 F3
F4
F2
MARK PEN U/D
CLEAR SELECT PEN
FORCE
SPEED
OFFSET
QUALITY
F1 F3
F4
F2
STEP SIZE
RS-232C COMMAND
FORCE
SPEED
OFFSET
QUALITY
F1 F3
F4
F2
INTERFACE FUNCTION
FILM PEN WIDTH
FORCE
SPEED
OFFSET
QUALITY
F1 F3
F4
F2
9600 RS-1 N
8BIT H
FORCE
SPEED
OFFSET
QUALITY
F1 F3
F4
F2
RS-232C COND No.
No.=1
