Gtec SATURN - DEFAULT CONFIGURATION

- 103 -

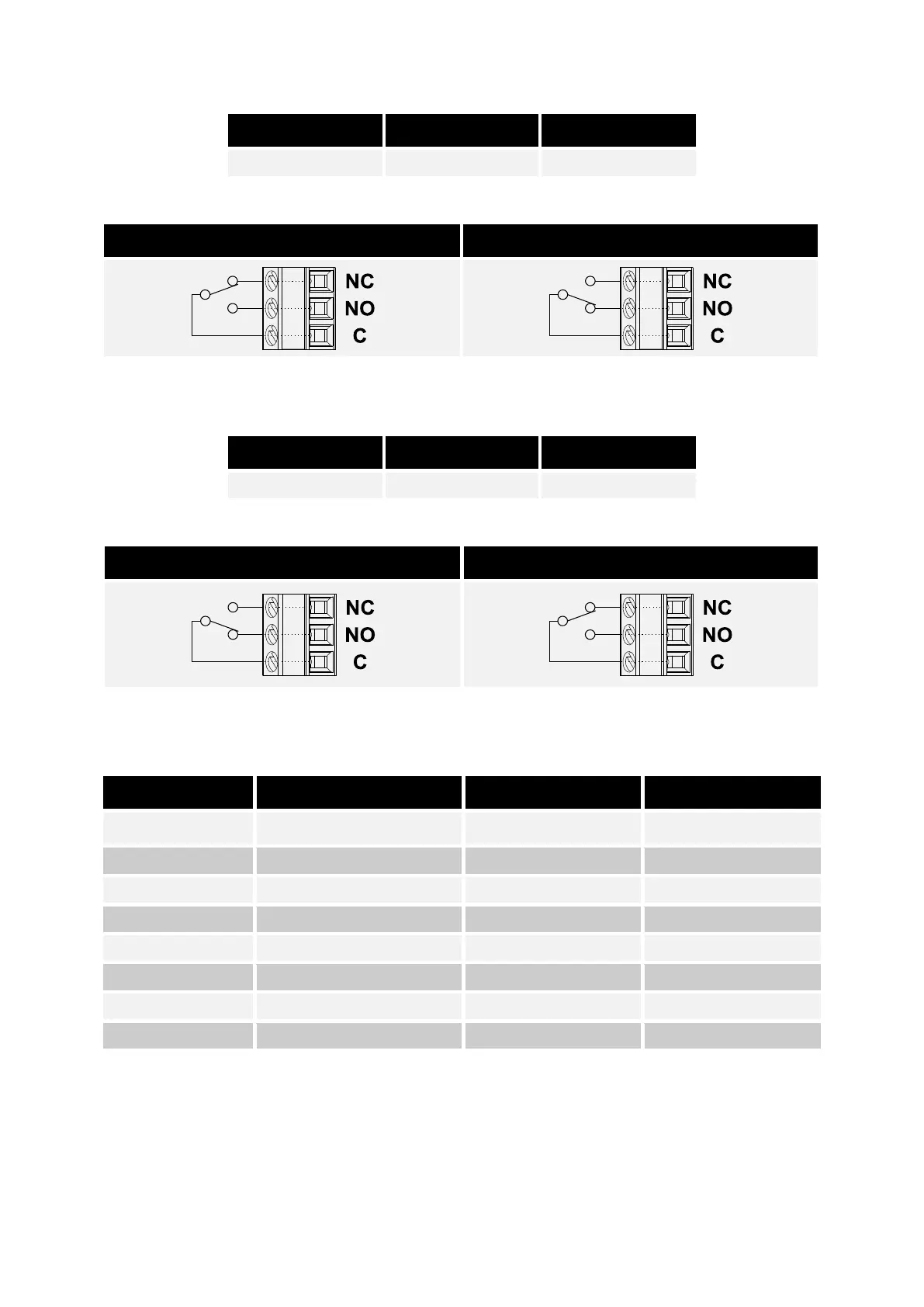

EXAMPLE 1 - Setting one output with:
Output mode
Logic
Delay (s)
Battery working
Normal OFF
0
the associated contact is:
CPS during mains operation
CPS during battery operation
EXAMPLE 2 - Setting one output with:
Output mode
Logic
Delay (s)
Battery working
Normal ON
10
the associated contact is:
CPS during mains operation
CPS during battery operation for at least 10
seconds
DEFAULT CONFIGURATION
Output contact
Output mode
Logic
Delay
1
Emergency only switch
(EOS)
Normal OFF
80 ms
2
Battery fail
Normal OFF
0 s
3
Any alarm
Normal OFF
0 s
4
Inverter locked
Normal OFF
0 s
5
CPS OK
Normal OFF
0 s
6
Battery working
Normal OFF
0 s
7
Deep discharge protection
Normal OFF
0 s
8
Battery circuit fault
Normal OFF
0 s
