CONNECTION OF CPS SINGLE-PHASE INPUT
The very first connection must be the protection conductor or the earth cable which should be
inserted in the terminal marked PE. The CPS must be earthed before use

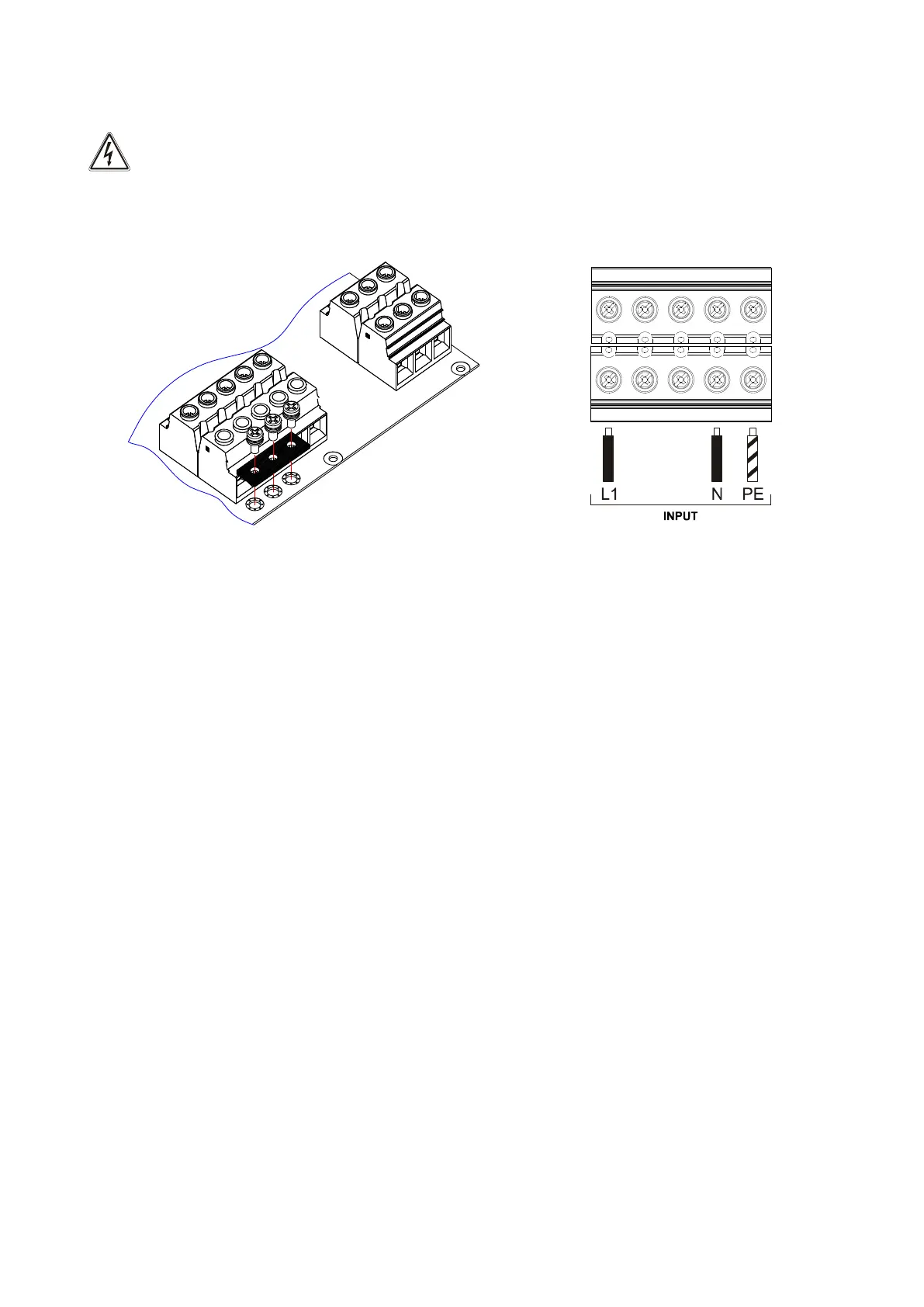

Apply the short circuit to the three input bushings (see "View of CPS connections", ref. 21) using the bar and the three
screws provided in the supplies box as shown in the left hand figure below. Then connect the phase cable to L1 as
indicated in the figure below right.
Note: the connections to the CPS terminals remain unchanged with respect to those indicated in the foregoing
paragraphs.
