OPERATION
137

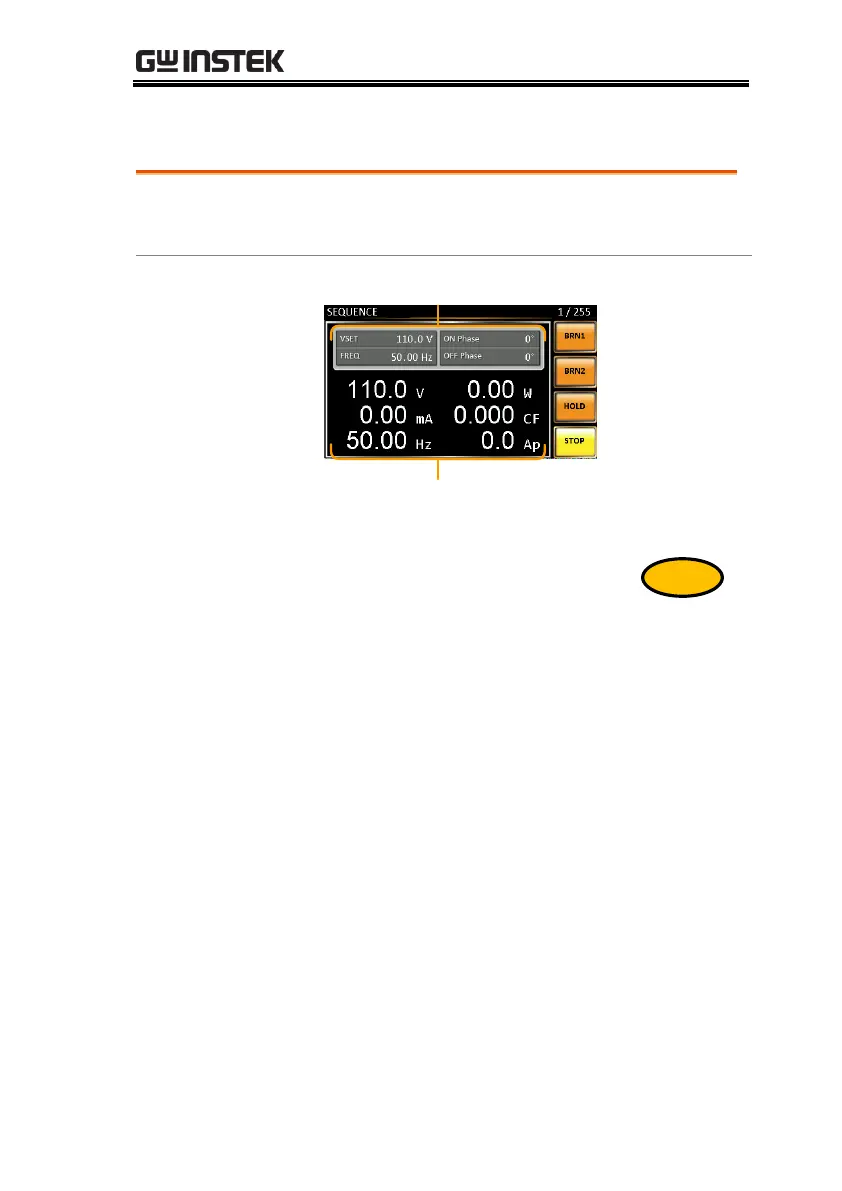

Running a Sequence
Background
When running a sequence, the display changes
to the sequence run view.
Run Screen
Overview
Settings
Step X of Y
Branch 2
Hold/Conti test
Stop/Run test
Readback
measurements
Branch 1
Steps
1. Press Output.
Output
2. Press Run[F4]. The test will start to run.
The settings of the current step will be shown at
the top of the screen and the measurement
readout will be shown on the bottom of the
screen.
The top-right of the screen will be display the
current step number by the total number of
steps (current step/total steps).
3. The test will continue to run until the last step
has run, or Stop[F4] is pressed. When the test
has finished/stopped, the screen will return to
the original settings screen.
4. If any of the steps have a conditional branch
configured, the branch can be manually
