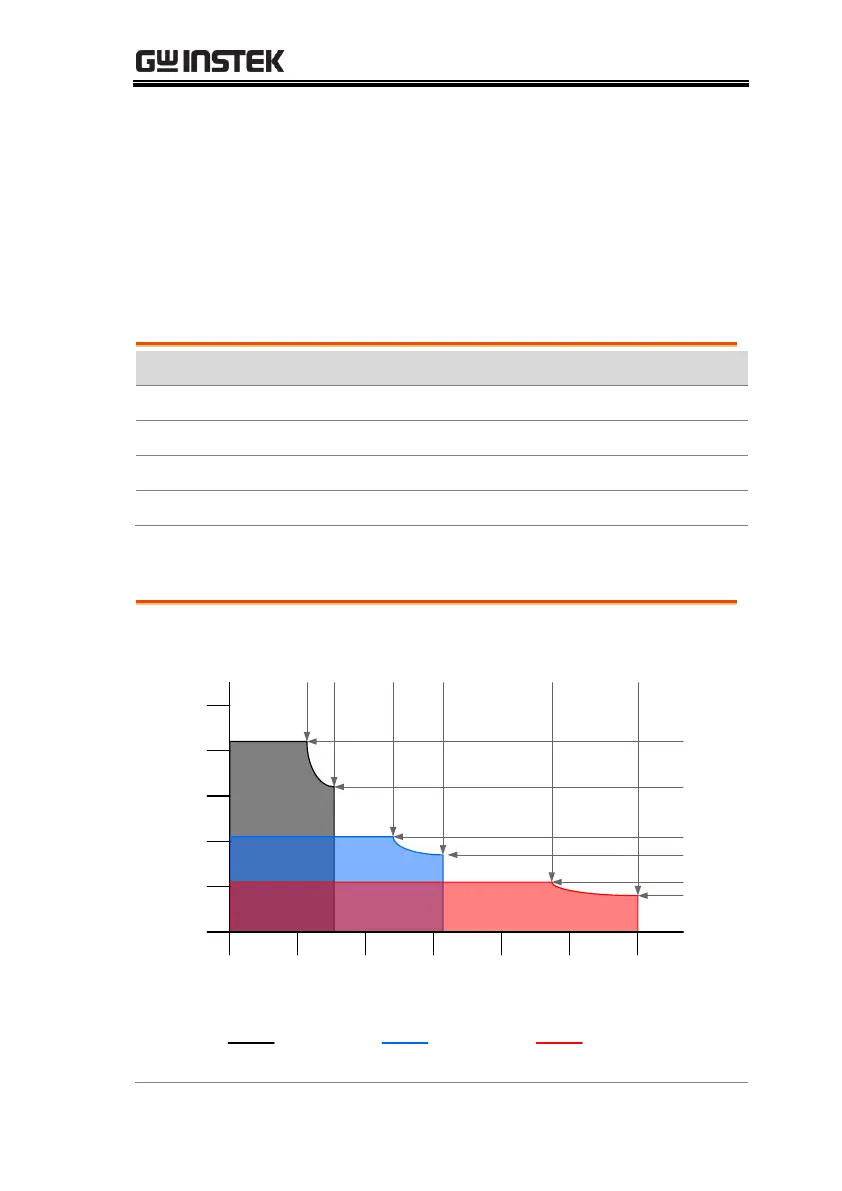

APS-7000 Series Overview
Series lineup
The APS-7000 series consists of 4 models, the APS-7050, APS-7100,
APS-7200 and APS-7300, differing only in capacity. Note that
throughout the user manual, the term “APS-7000” refers to any of
the models, unless stated otherwise.
Model name
Max. Output Current
Power Rating
Output Voltage
APS-7050
4.2A/2.1A
500VA
0~310.0 Vrms
APS-7100
8.4A/4.2A
1000VA
0~310.0 Vrms
APS-7200
16.8A/8.4A
2000VA
0~310.0 Vrms
APS-7300
25.2A/16.8A
3000VA
0~310.0 Vrms
Operating Area
Voltage (V)
Current (A)
0
1
2
0
3
4
5
100
200
300
400 500
600
120 155 240
310 480
600
4.2
3.23
2.1
1.62
1.05
0.83
APS-7050 Output Operating Area
155V Range 310V Range 600V Range
(APS-003 Option)
