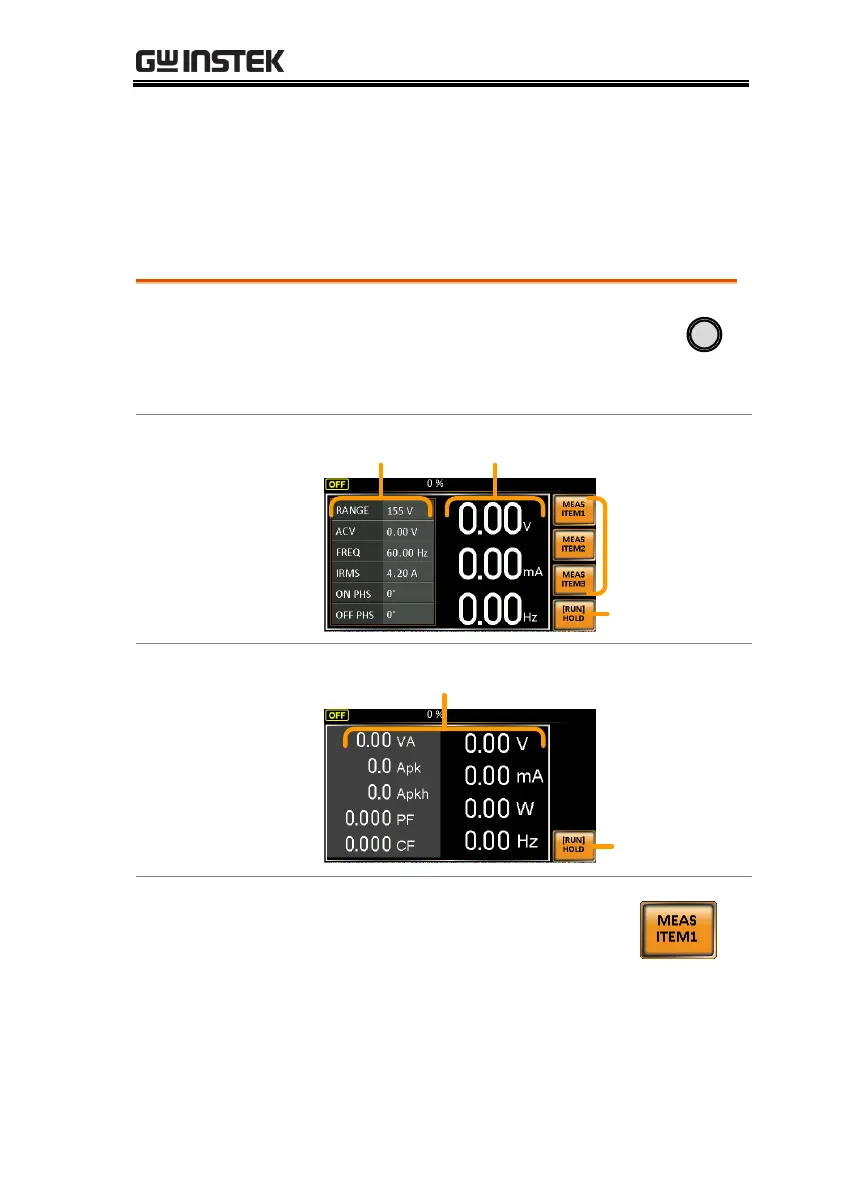

Display Modes
The APS-7000 power supply has two display modes. The standard
display mode shows the power supply setup on the left and the 3
configurable measurements on the right. The simple display mode
shows all measurement items available on the APS-7000.
Steps
1. Press the Display key.
2. The display mode will toggle each
time the key is pressed.
Display
Standard Mode
Settings Measurements
Configurable
measurements
Hold
measurement
Simple Mode
Measurement Items
Hold
measurement
Configuring the
Standard Mode
Measurements
1. Press the Meas Item1, Item2 or
Item3 soft-key.
