Using the Rack Mount Kit
Background
The APS-7050, APS-7100, APS-7200 and
APS7300 have optional Rack Mount kits:
Model
Rack Mount kit part
number
APS-7050 & 7100
GRA-423
APS-7200
GRA-429
APS-7300
GRA-430
The APS-7050 and APS-7100 are designed to fit
into a 2U rack height. The APS-7200 is
designed to fit into a 7U rack height. The APS-
7300 is designed to fit into a 9U rack height.
Please see your distributor for further rack
mount details.

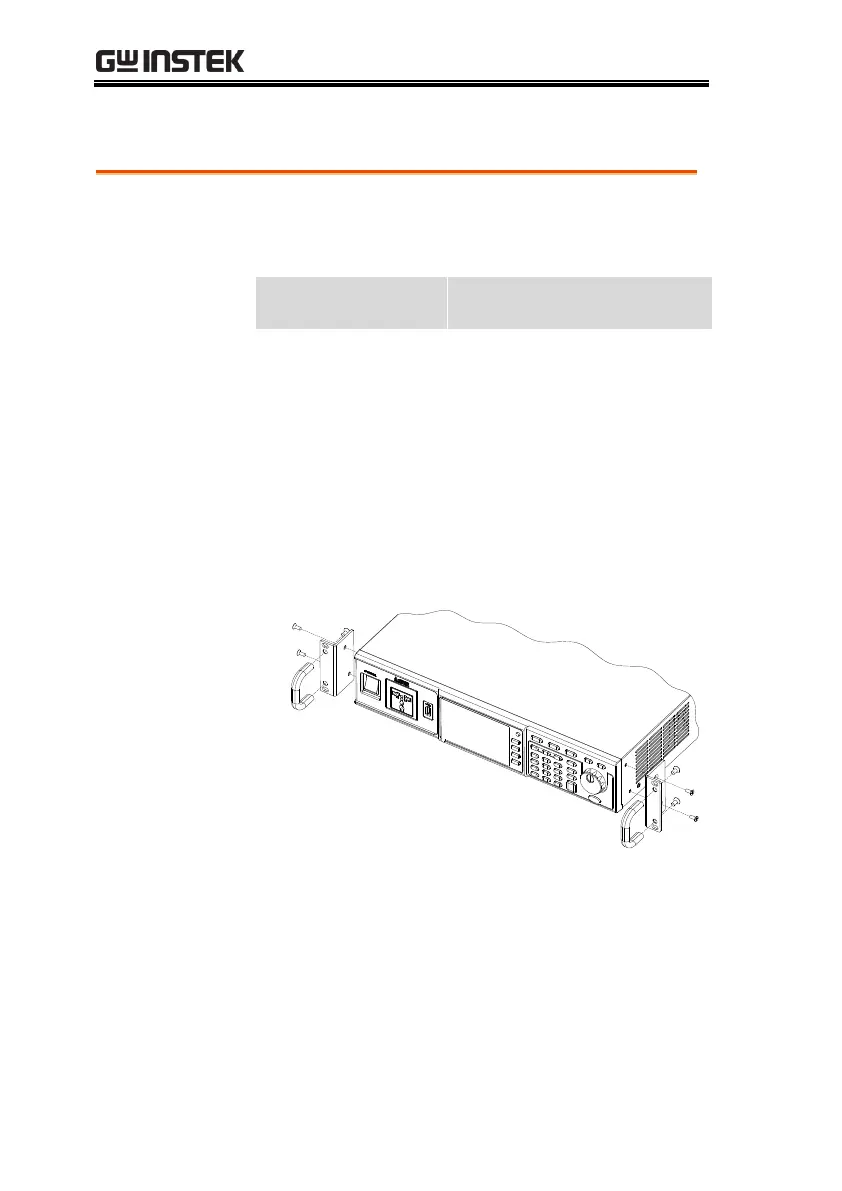

Rack mount
diagram (APS-
7050 or 7100)
