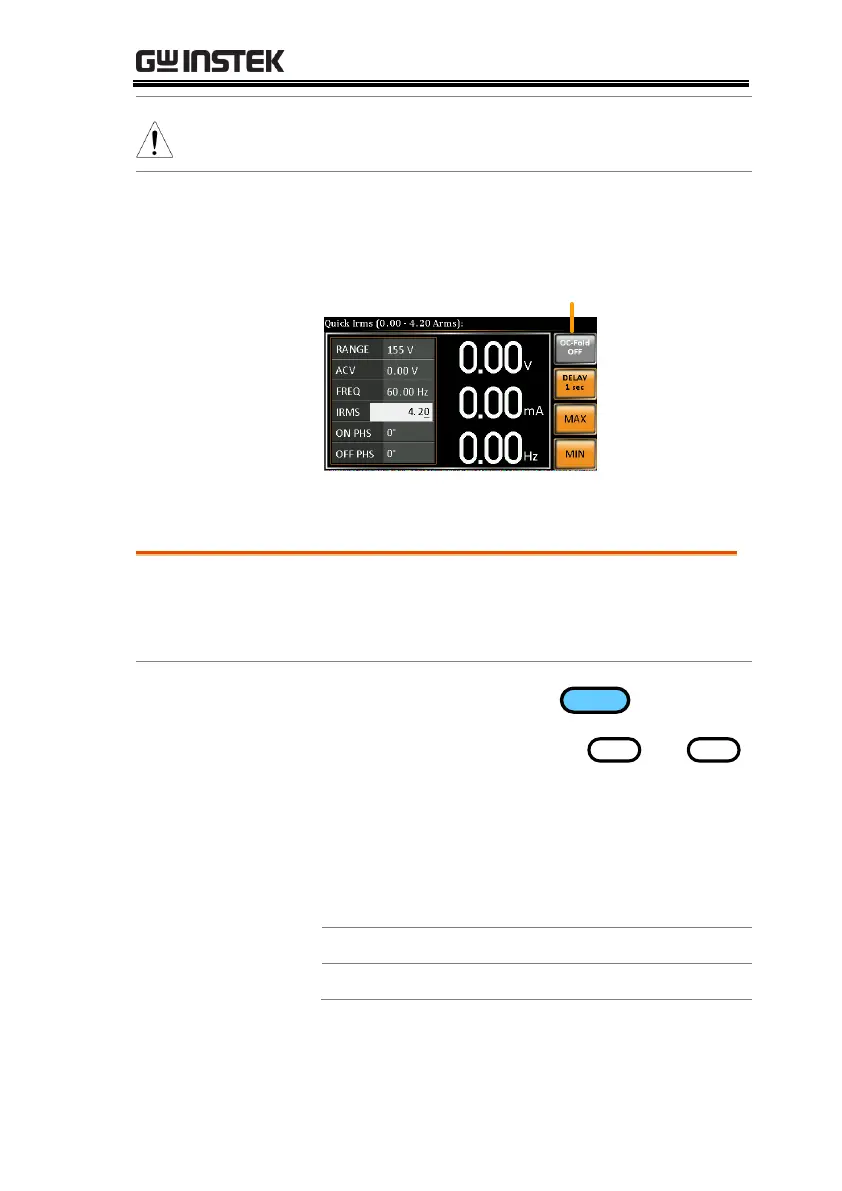

GW Instek APS-7000 Series User Manual

OPERATION
73
Note
OC-FOLD can only be active when the I rms level is
greater than 0.
7. Press I rms and then press OC-FOLD[F1]
toggle the OC-Fold function on or off.
OC-Fold setting
Setting the On/Off Phase
Background
The on phase setting sets the starting phase of
the voltage output. The off phase setting sets
the ending phase of the voltage output.
Steps
1. Press Shift + 7 or Shift + 4
the On Phase or Off
Phase, respectively.
Shift
+
7
On Phase
or
4
Off Phase
2. Set the On Phase or Off Phase setting with the
scroll wheel/keypad or with the F3 ~ F4 soft-
keys. The MAX and MIN soft-keys set the
phase to the maximum and minimum,
respectively.
Range
0 ~ 359º
Soft-keys
MAX, MIN
