APS-7000 Series User Manual
70
Setting the Current RMS Level
Background
The I rms setting sets the root mean square
current.
Setting the RMS current sets a limit on the
current that can be sourced by the power
supply. Once the output current over the
setting, the output will set to off.
Steps
1. Press I rms to access the I rms
menu.
I rms
Ipk-Limit
2. Set the I rms level with the scroll
wheel/keypad or with the F3 ~ F4 soft-keys.
The MAX and MIN soft-keys set the I rms
level to the maximum and minimum,
respectively.
Range
0.00 ~ full scale A (dependant on
the voltage range)
Soft-keys
MAX, MIN
3. Press Enter to confirm the current setting.

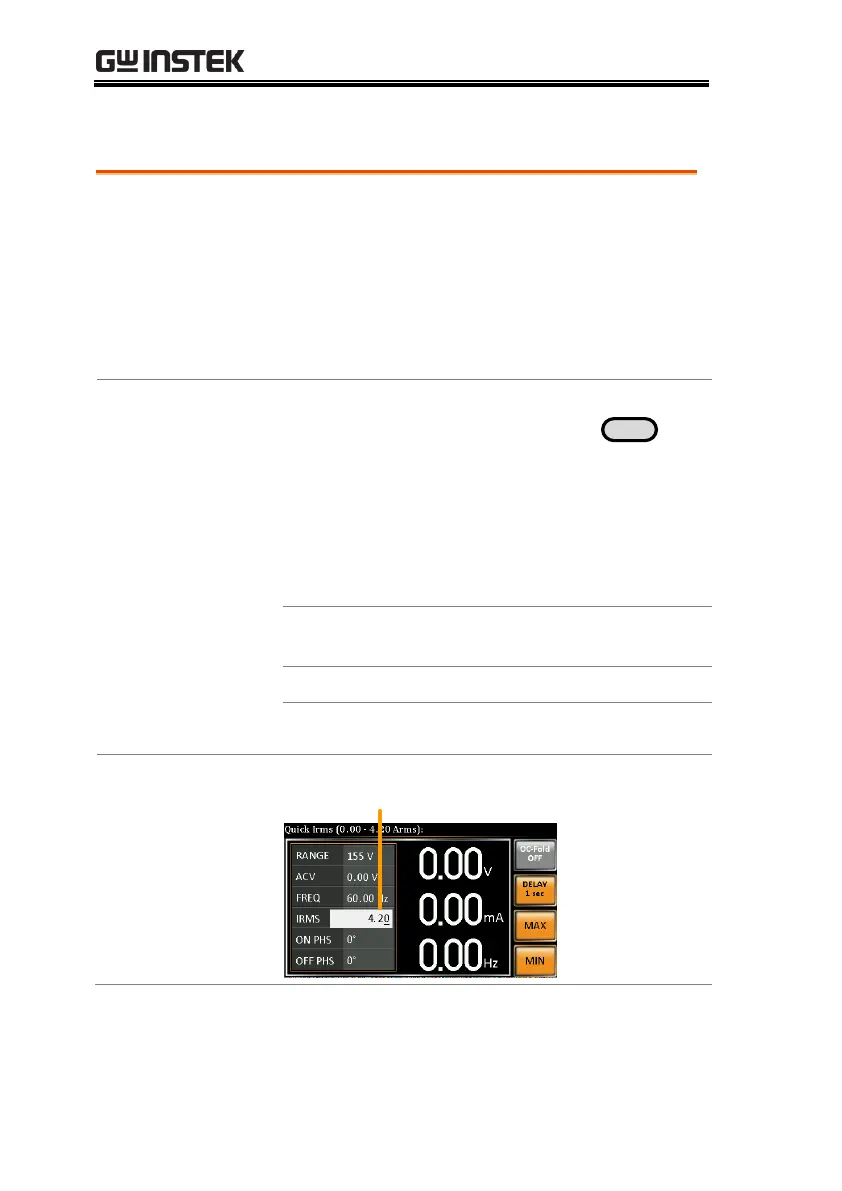

Example
Irms
Min/Max
settings
F3
F4
