PIM-SSM configuration example
Network requirements
As shown in Figure 57, receivers receive VOD information through multicast. The receiver groups of
different organizations form stub networks, and one or more receiver hosts exist in each stub network. The
entire PIM domain is operating in the SSM mode.
Host A and Host C are multicast receivers in two stub networks.
The SSM group range is 232.1.1.0/24.
IGMPv3 runs between Switch A and N1 and between Switch B/Switch C and N2.

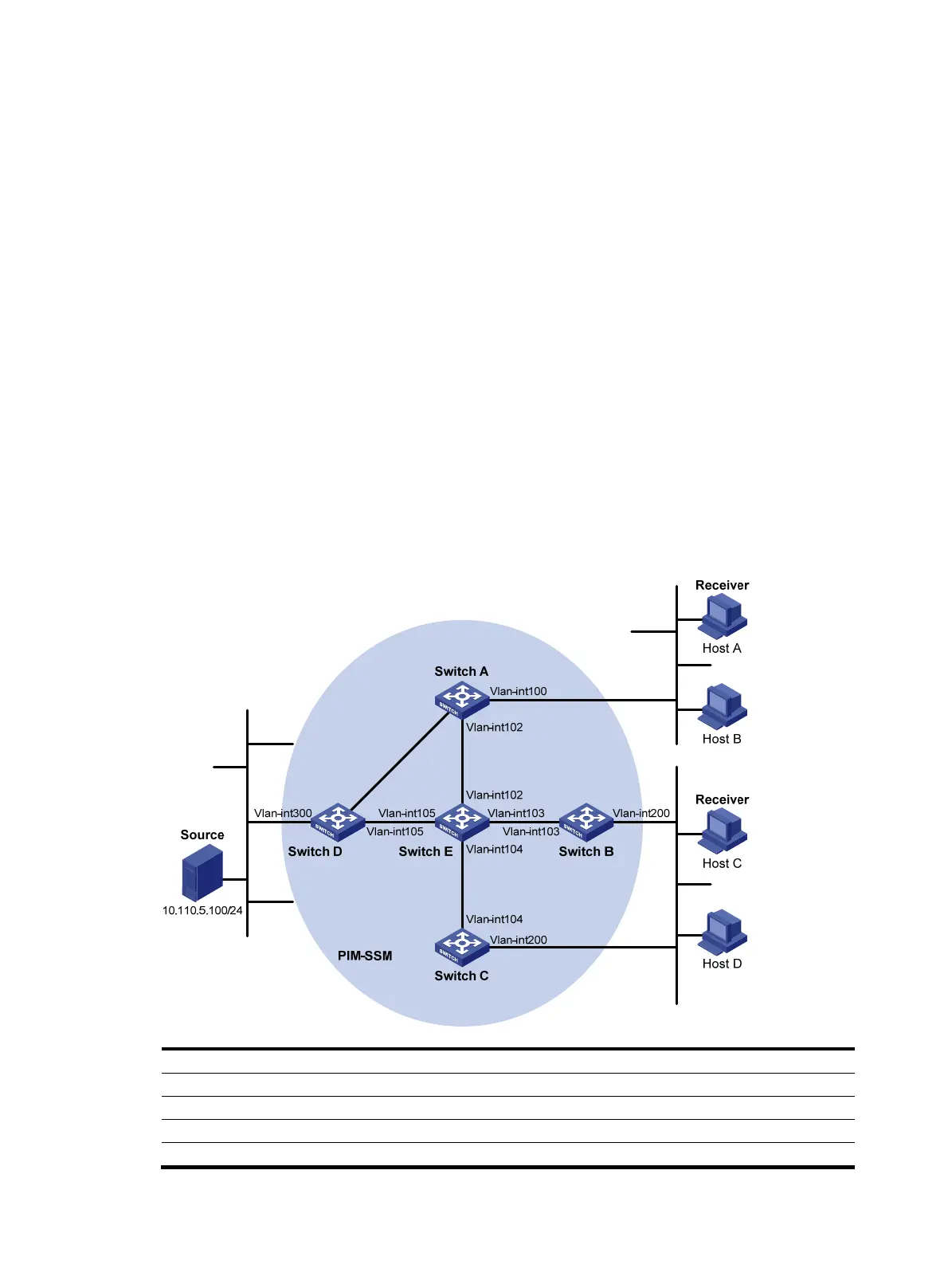

Figure 57 Network diagram
Device Interface IP address Device Interface IP address
Switch A Vlan-int100 10.110.1.1/24 Switch D Vlan-int300 10.110.5.1/24
Vlan-int101 192.168.1.1/24 Vlan-int101 192.168.1.2/24
Vlan-int102 192.168.9.1/24 Vlan-int105 192.168.4.2/24
Switch B Vlan-int200 10.110.2.1/24 Switch E Vlan-int104 192.168.3.2/24
Ethernet
EthernetEthernet
N1N2
Vlan-
i
n
t1
01
Vl
an
-int10
1
