Saw-Spindle Moulder
B3 / B3 e-classic
11.2 Switching on the machine / Switching off the machine / Emergency-stop
Warning! Risk of injury due to insufficient preparation!
It is only permitted to switch on the machine if, for the work at hand, the required preconditions are fulfilled
and any preliminary work is completed. Therefore, the adjusting, fitting and operating instructions (see the
corresponding chapters) must be read before switching on the machine.
Attention! Risk of material damage! Improper operation may cause damage to the machine.
Do not activate the green push button whilst the machine is in operation!
Switching on the machine
1. Connect the machine to the main power supply.
2. If available: unlock the main switch and switch on
(position „I“).
3. Set the mode switch onto the following settings:
• Anti-clockwise rotating spindle moulder
• Clockwise rotating spindle moulder
4. Only with alternating current:
• Press the green button on the control panel and
hold it pressed down.
• Release the push button once the machine has
reached the maximum rotational speed.
With a three-phase current motor
• Press green push button on the control panel and
release.
! Mode switch
" Green push button - ON
Switching off the machine
1. Push and release the red push button.
2. If available: switch off the main switch (position “0”)
and secure.
§ Red push button - OFF
Emergency-stop: (depending on the equipment)
Hold down the red push button or
Press the EMERGENCY-STOP button.
The machine is stopped automatically.
Release the EMERGENCY-STOP button by turning it.
$ EMERGENCY STOP button
Attention! Risk of material damage! Only operate the machine in ambient temperatures from +10°C to
+40°C. If the instructions are not followed, damage may occur to bearings.

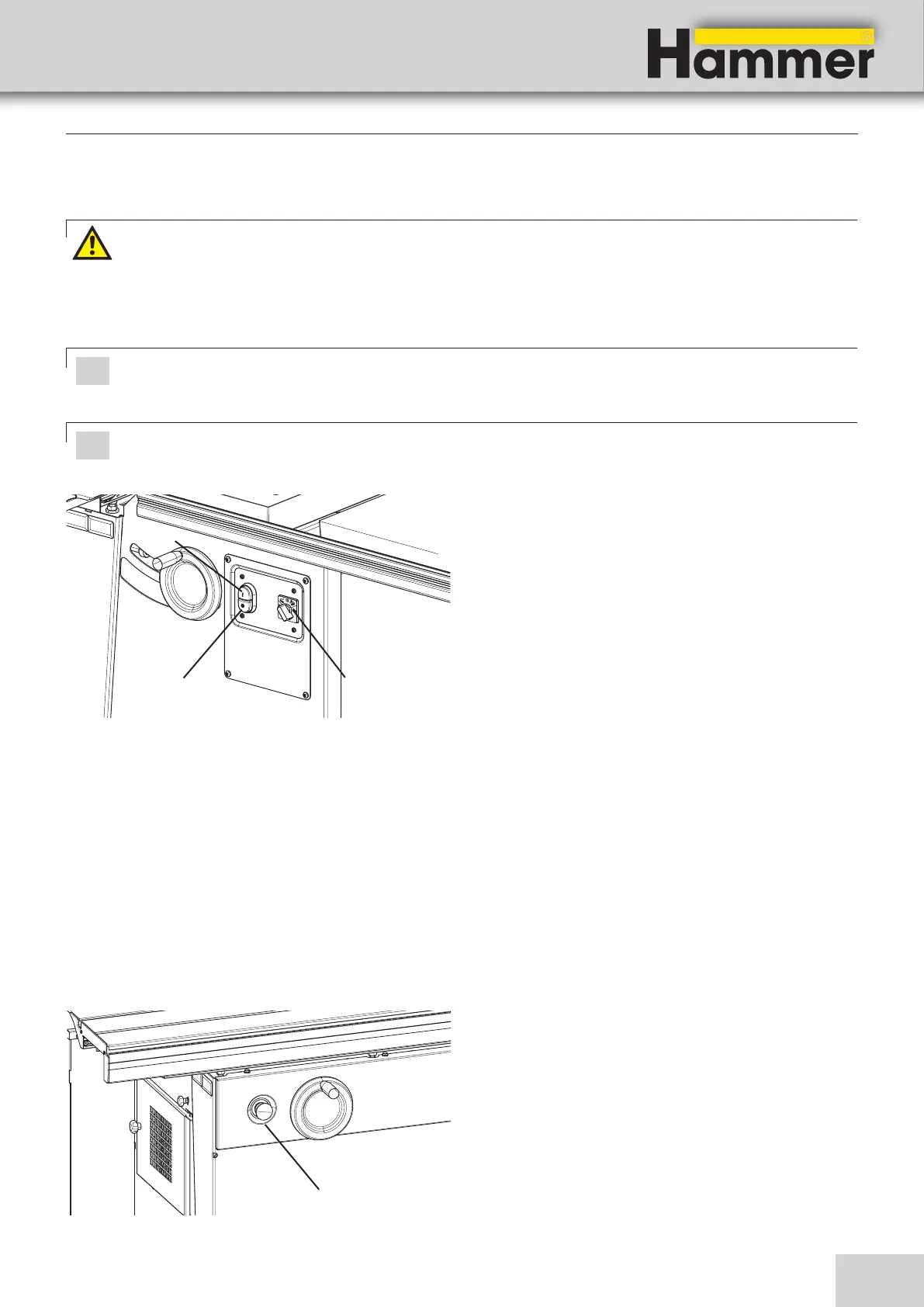

Fig. 11-1: Green push button - ON
Fig. 11-3: EMERGENCY STOP button
Operation
