ContentServer 3000

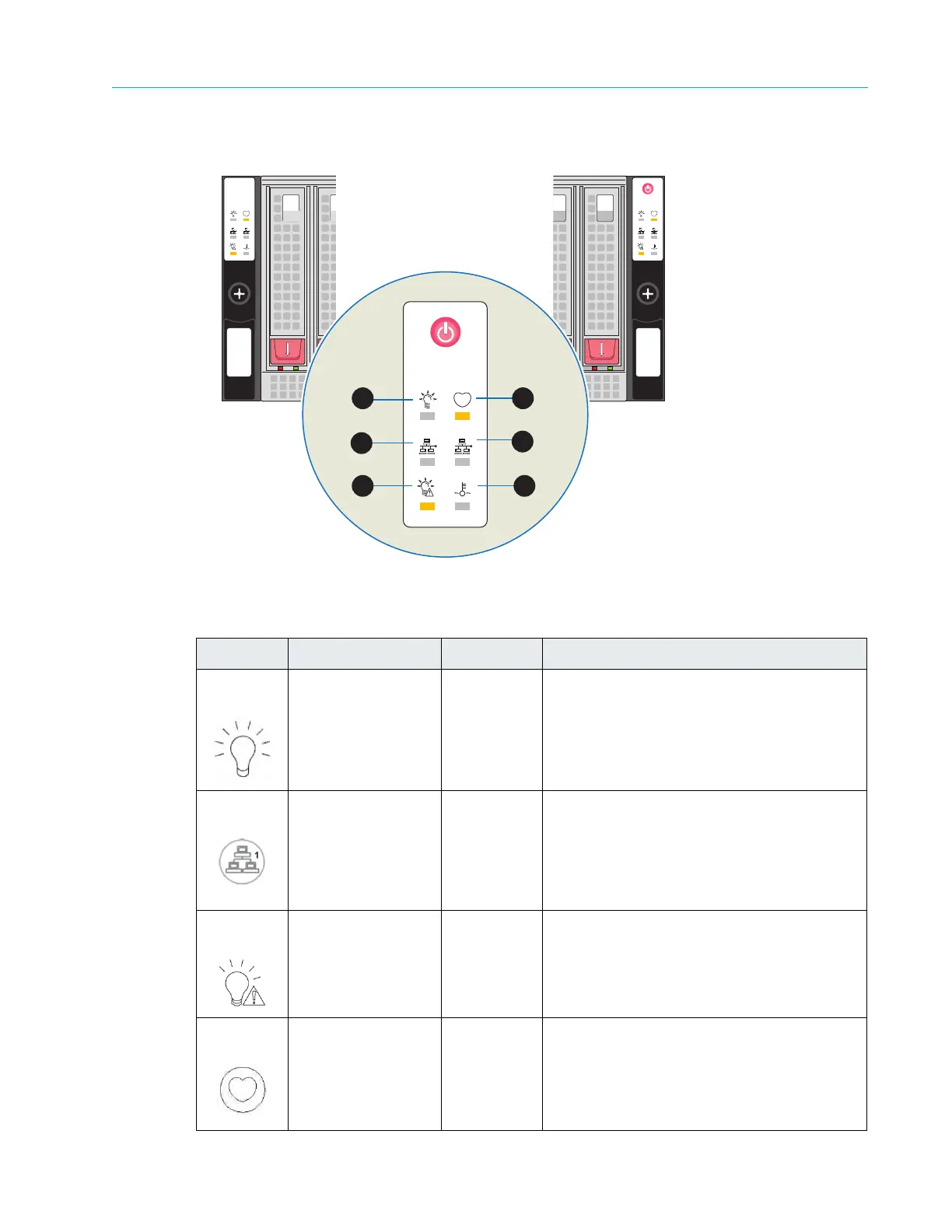

Figure 8–21: ContentServer 3000 Control Panel LEDs
Table 8–20: ContentServer 3000 Front Bezel LEDs
Symbol LED Color/State Description
1 Power Solid Indicates that power is being supplied to
the
power supply units
2 NIC 1 Flashing Indicates network activity on the NIC 1 port
3 Power Fail Solid Indicates a power supply module has failed.
Refer to
the Harmonic MediaGrid
Component Replacement Guide for details
on replacing the power supply.
4 Heartbeat Flashing Indicates that power is being supplied to
the
server board
Left Control Panel
Right Control Panel
15
OPEN
0
OPEN
1
2
3
4
5
6
