ContentServer 4000

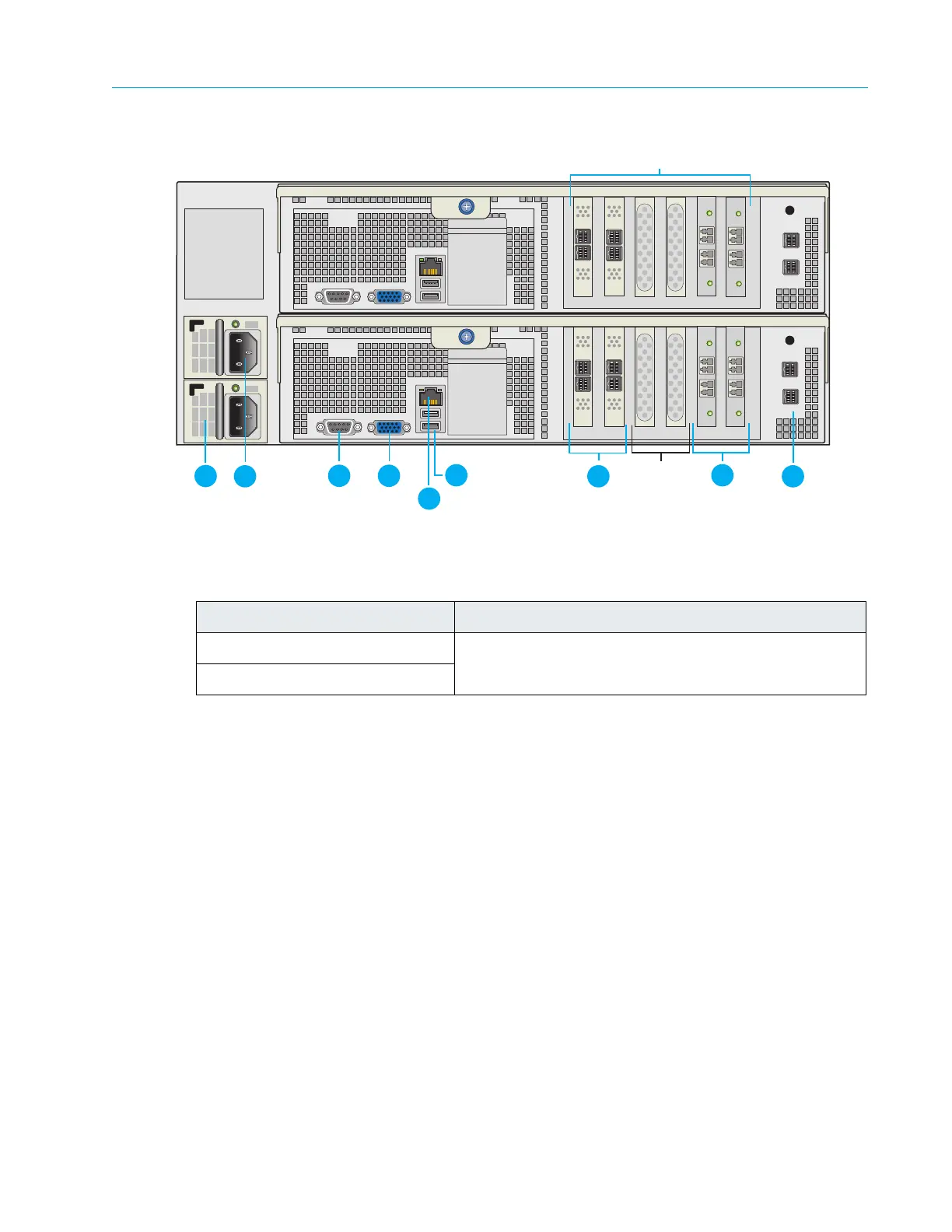

Figure 8–32: ContentServer 4000 Rear Panel View
Table 8–31: ContentServer 4000 Rear Panel Components
Item Description
1. Power supply 0 The ContentServer 4000 includes dual redundant power
suppli
es.
2. Power supply 1
Controller A
Controller B
1
2
4 6
7
8
9
5
3
Unused
PCIe slots 6 - 1 (left to right)
