ContentDirector 1000E and High Performance ContentDirector 2000B

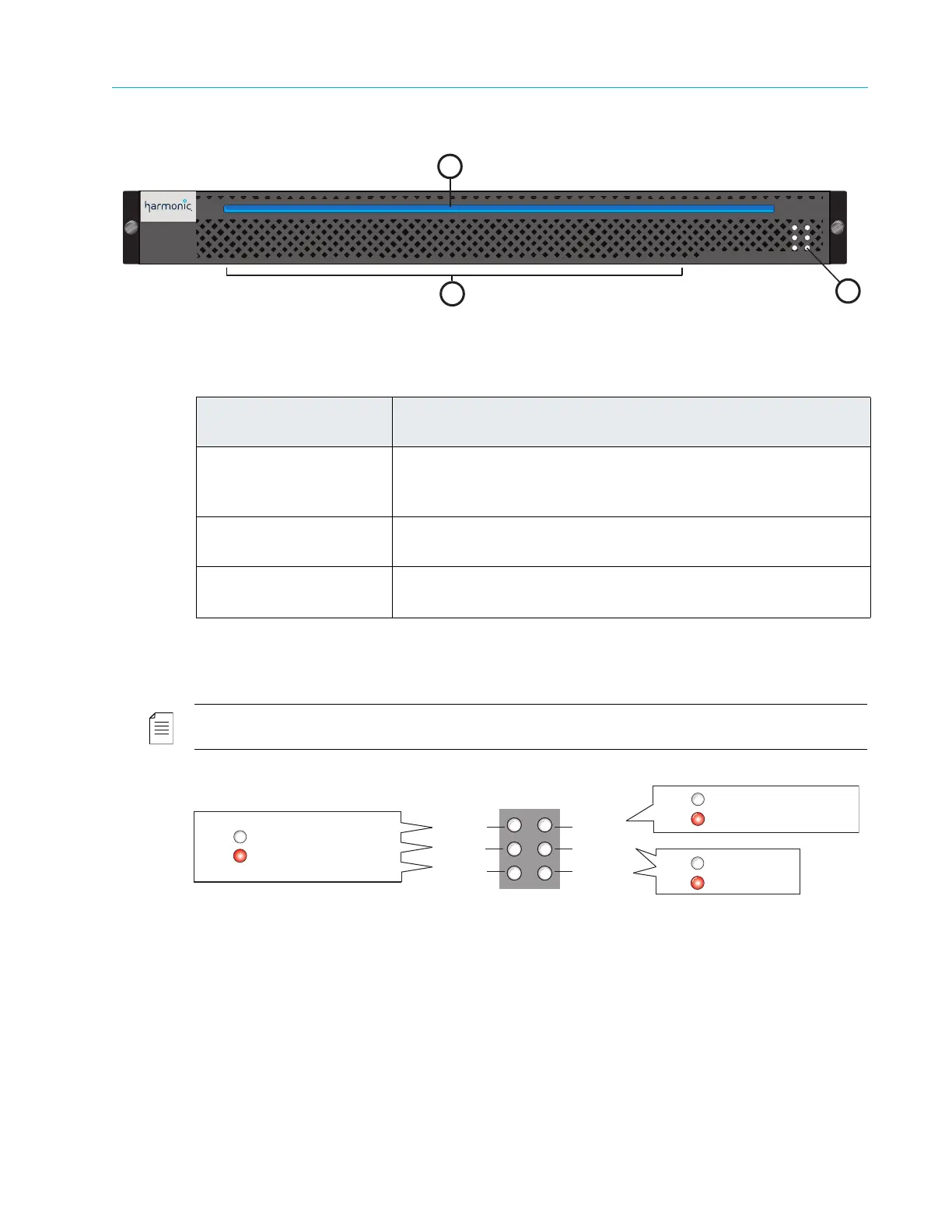

Figure 9–2: ContentDirector Front Panel
System Status LEDs
Figure 9–3 and Table 9–4 detail the six system status indicators on the front of the ContentDirector.
NOTE: The status indicators on the bezel for the High Performance ContentDirector 2000B do not display
status for the solid state drive.
Figure 9–3: ContentDirector Front Panel Indicators
Table 9–3: ContentDirector Front Panel Descriptions
Indicator, Button, or
Connector
Description
1. Power indicator
A bright blue
power indicator is provided across the top of the
front panel. This indicator also provides a “wink” function, which
allows you to identify a unit from the SystemManager application.
2. Air vents Allows airflow through the unit. For optimum airflow, do not
obstruct
the air vents.
3. Status LEDs
An array of six
status LEDs is provided on the front panel. See the
following figure and table for descriptions of each status LED.
ContentDirector
MediaGrid
2
1
3
NIC 0 Link
NIC 1 Link
NIC 2 Link
NIC 3 Link
Hard Drive 0
Hard Drive 1
Ethernet communications OK
Ethernet communications problem
White
Red
Ethernet communications OK
Ethernet communications problem
White
Red
Drive status OK
Drive error
White
Red
