PVR 6000 Series
Professional Integrated Receiver Decoders
Page 4-11
4.2.2.2. DVB-S2 Receiver Configuration
This section details the front panel menus that enable configuring the DVB-S2
receiver in an PVR 6000 DVB-S2 front end device.

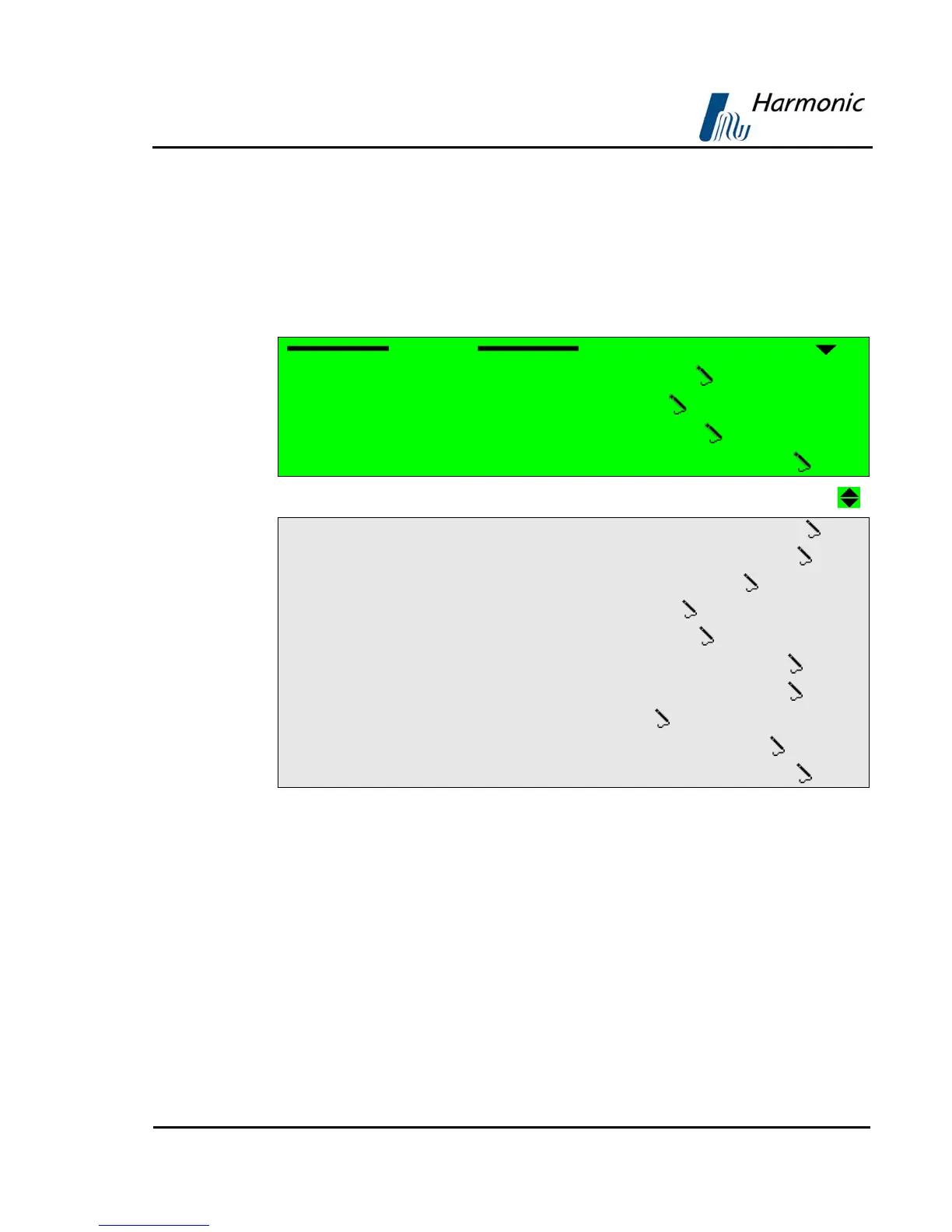

The following is a screen of the DVB-S2 Receiver Configuration menu as
displayed on the front panel screen:
Receiver 1-2-1
01 Frequency 1.000000 [GHz]
02 Symbol Rate 27.000000 [Mbaud]
03 Modulation DVB-S2-N-QPSK
04 Roll-off 35%
05 Pilots ON
06 FEC Rate 8/9
07 Spectral Inversion AUTOMATIC
08 LNB Power Supply 18V (HORIZONTAL)
09 LNB 22 KHz OFF (Low Band)
10 Input Serial Source IN-B
11 Freq Drift Compensation OFF]
12 LNB L.O. Type UNIVERSAL <9.75,...
13 Frequency Range L BAND
14 Frequency Band Scan OFF
To Next Page
