10/6/10 888-2629-200 2-27
WARNING: Disconnect primary power prior to servicing.
Section 2 Installation
Maxiva ULX COFDM Series

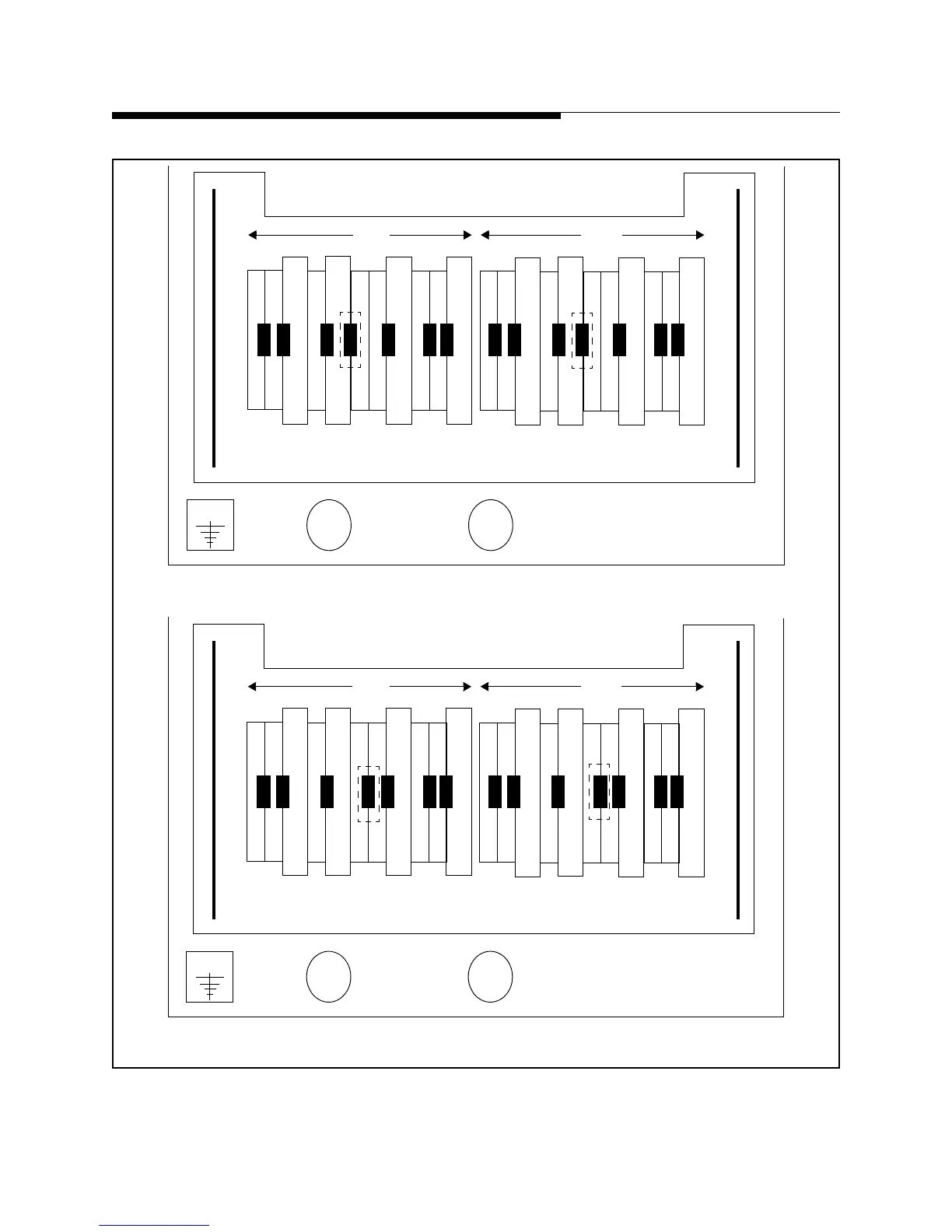

Figure 2-7 TB1 and TB2 Jumpers For Single Cabinet With 10, 12, or 16 PA Modules
Top View of Back of PA Cabinet, Jumpered for 208 to 240 VAC Delta or WYE
TB1 TB2
12 3 4 5 67 8 91011 12 3 4 5 67 8 91011
Ground
Block
AC Power
Entrance
AC Power
Entrance
Top View of Back of PA Cabinet, Jumpered for 380 to 415 VAC WYE
TB1 TB2
123 4567891011 123 4567891011
Ground
Block
AC Power
Entrance
AC Power
Entrance
MOV
Board
MOV
Board
MOV
Board
MOV
Board
L1 L2 N L3 L1 L2 N L3
L1 L2 N L3 L1 L2 N L3
To Next Page
