Functions and outputs
Quantum
X
I3031-14.0 HBM: public 191

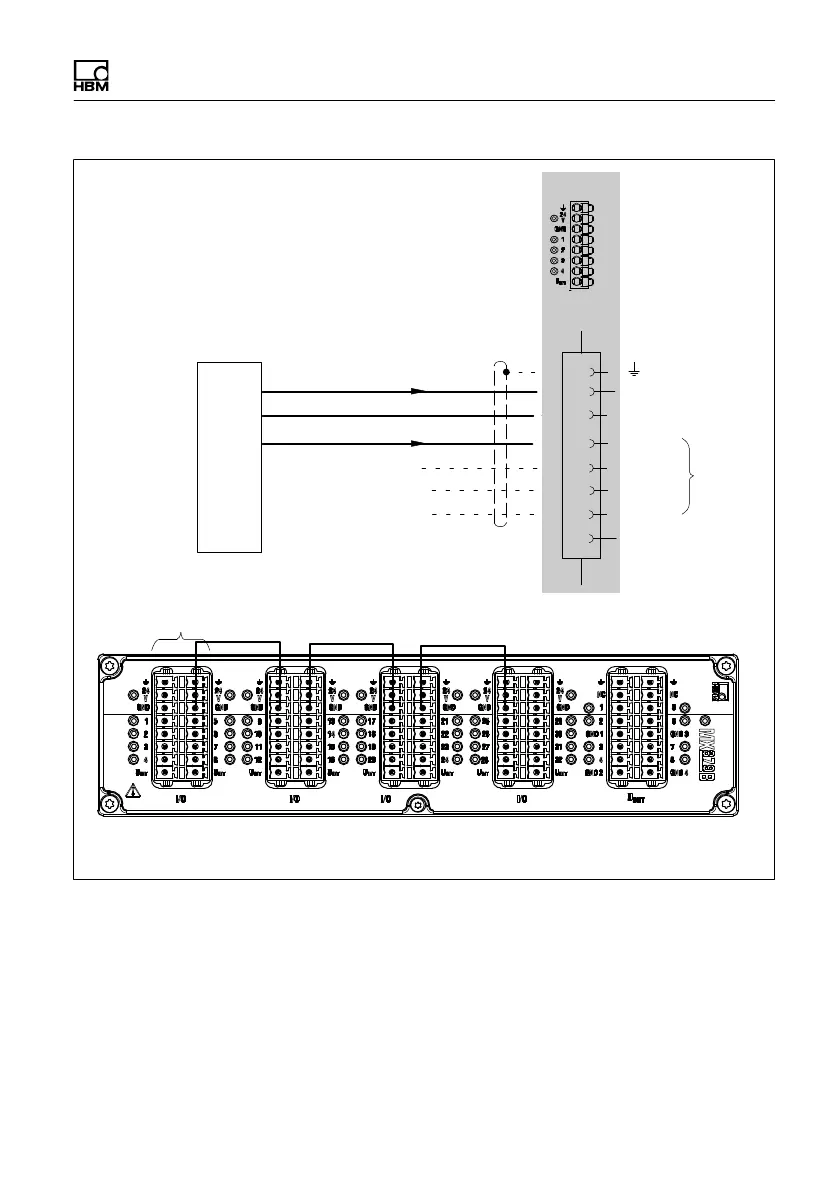

Digital input 24 V (1)
24 V
Gnd
1 … 32
2
3
4
U
INT
24 V (optional)
I/O
Note:
Each twin unit comes with one power supply.
To supply all I/Os with power, bridging is required or each twin unit needs to be powered
separately.
Source
1
2
3
4
5
6
7
8
