Redundancy
160
7.1
Link Aggregation
RM Web
Release
6.0
07/2010

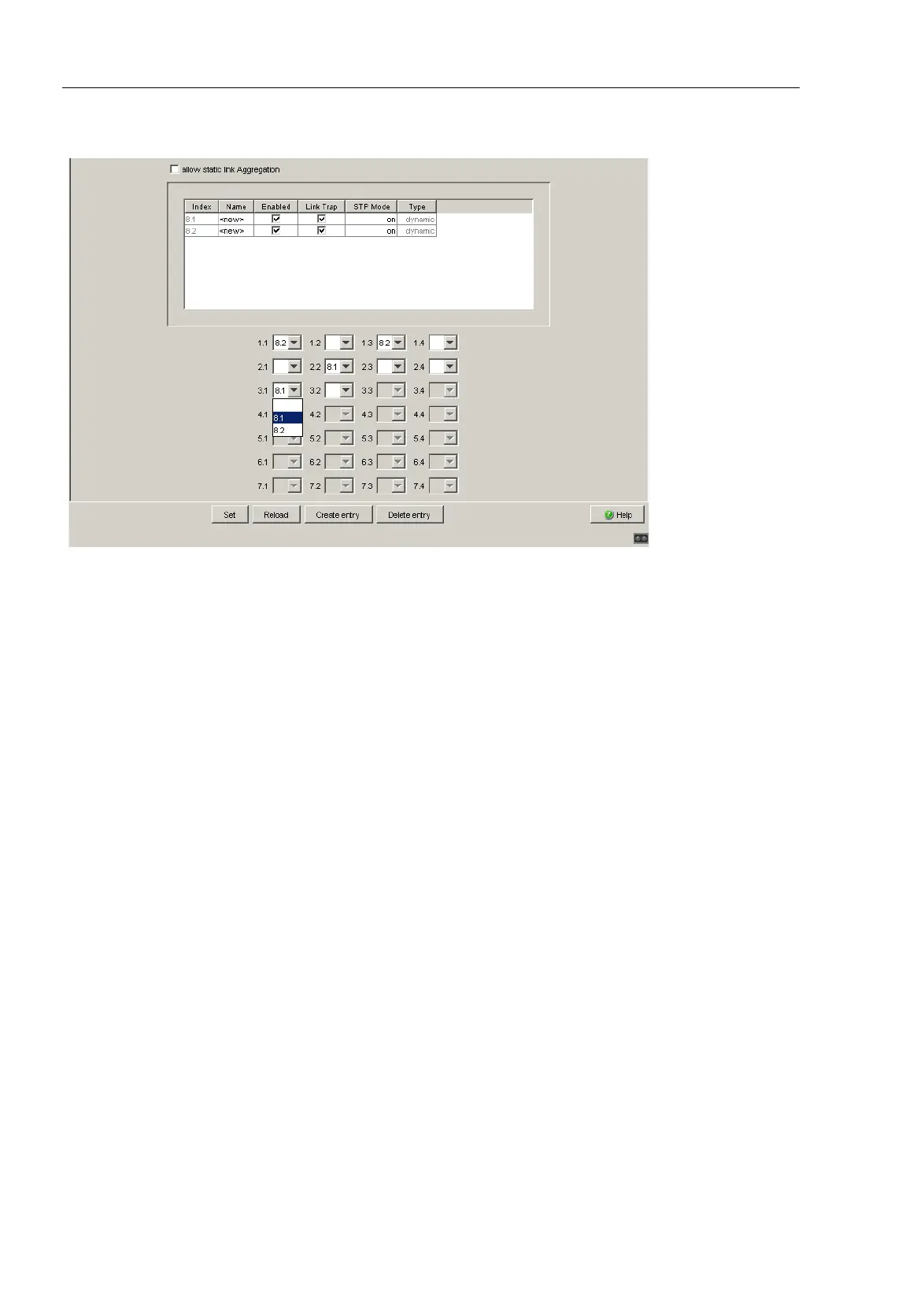

Figure 38: Setting the link aggregation
Note: For PowerMICE and MACH 4000
To increase the availability of particularly important connections, you can
combine HIPER-Ring (see on page 161 “Ring Redundancy“) and link
aggregation.
If you want to use a link aggregation in a HIPER-Ring, you first configure the
link aggregation, then the HIPER-Ring. In the HIPER-Ring dialog, you enter
the index of the desired link aggregation as the value for the module and the
port (8.x). Ascertain that the respective Ring port belongs to the selected link
aggregation.
