Fluent Pro Fluid Management System

44 During Procedure English

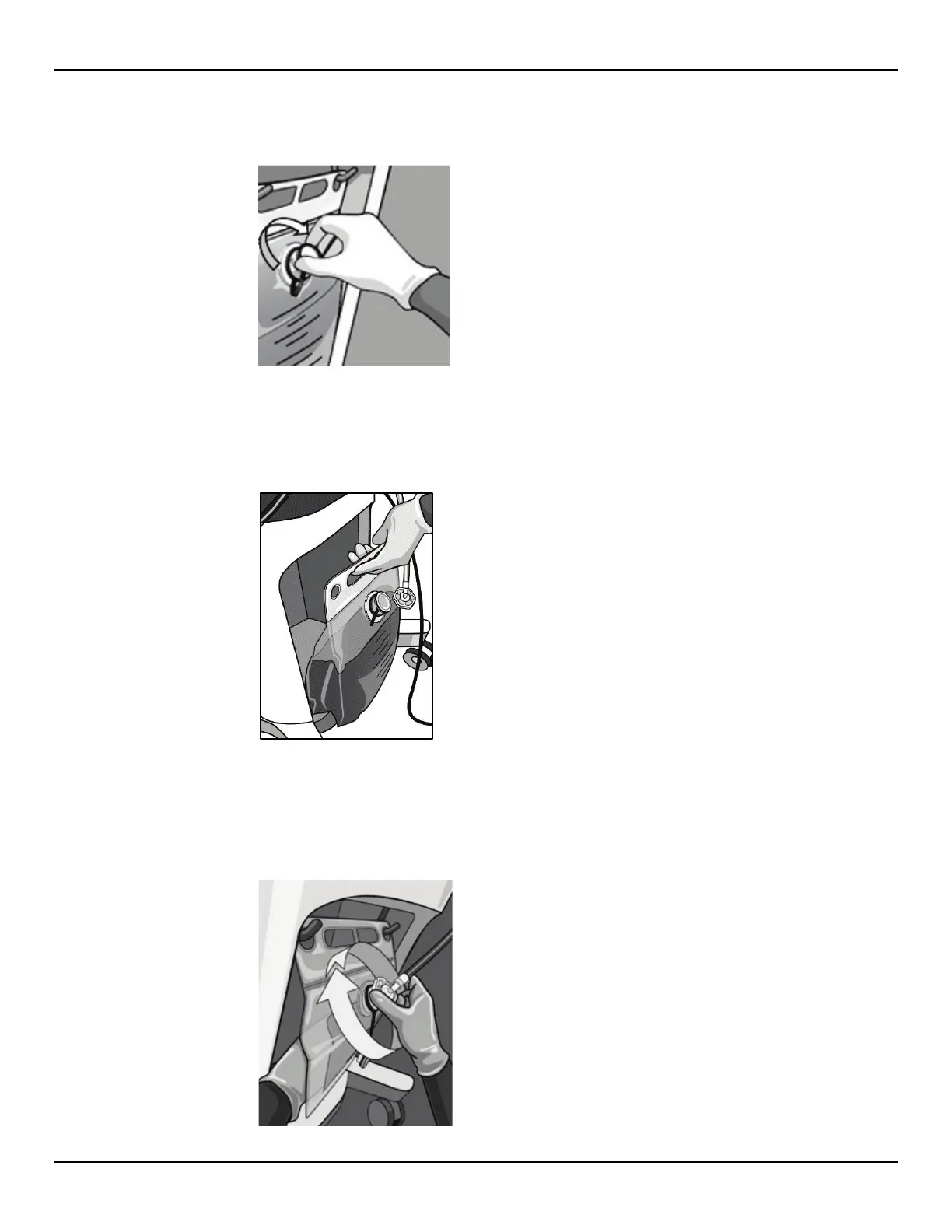

3.8.2.4 Screw the Waste Bag cap onto the Waste Bag by rotating the cap clockwise.

Figure 54: Screw Waste Bag Cap onto Waste Bag

3.8.2.5 Remove the full Waste Bag from the Waste Bag Hooks and discard the Waste Bag according to facility

protocols.

Figure 55: Remove Full Waste Bag

3.8.2.6 Hang a new Waste Bag onto the Waste Bag Hooks.

3.8.2.7 Attach the Out-FloPak Waste Bag Connector onto the Waste Bag by rotating the connector clockwise.

Figure 56: Install Waste Bag Connector
